General Description

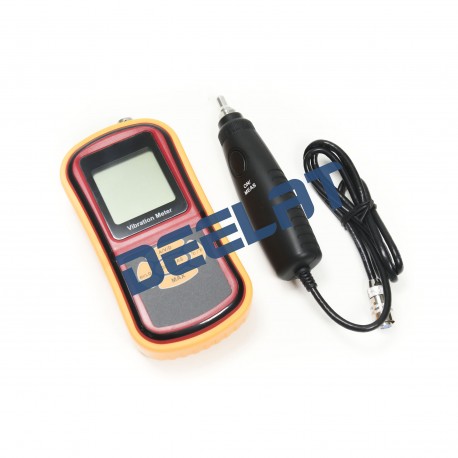

Vibration Meter – 150 x 80 x 38 mm


The vibration meter has a total size of 150 x 80 x 38 mm. The acceleration measurement range is 0.1 – 199.9 meters/sq, second, the velocity measurement range is 0.1 – 199.9 mm/s, and the displacement measurement range is 0.001 – 1.999 m P-P.

Function
The vibration meter uses a vibration sensor called an accelerometer to measure the velocity, acceleration, and displacement of a designated area in order to determine vibration level, which is then displayed on the LCD screen. The button interface has several different functionalities for vibration analysis, including a max hold and temperature selection function. The unit is powered by a 9V battery.

Applications
The vibration meter is ideal for mechanical and industrial settings to measure the vibrations associated with various kinds of industrial machinery in troubleshooting and efficiency testing.

Technical Details

Acceleration Measurement Range: 0.1~199.9 m/s
Velocity Measurement Range: 0.1~199.9 mm/s
Displacement Measurement Range: 0.001~1.999 m P-P
Measuring Accuracy: 5%
Measurment Frequency Range of Acceleration: 10 Hz~1 KHz (LO), 1KHz~15KHz (HI)
Measurment Frequency Range of Velocity: 10 Hz~1 KHz (LO)
Measurment Frequency Range of Displacement: 10 Hz~1 KHz (LO)
LCD Display: 3.5 Digits
Operating Temperature: 0~40'C
Power: 9V Battery
Unit Size: 150 x 80 x 38 mm
Brand: Deelat Industrial
