Coolant Refractometer
- 1.100-1.400 sg

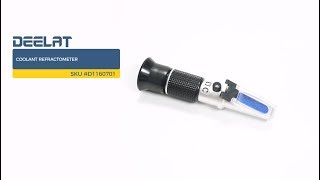

Product Video
General Description

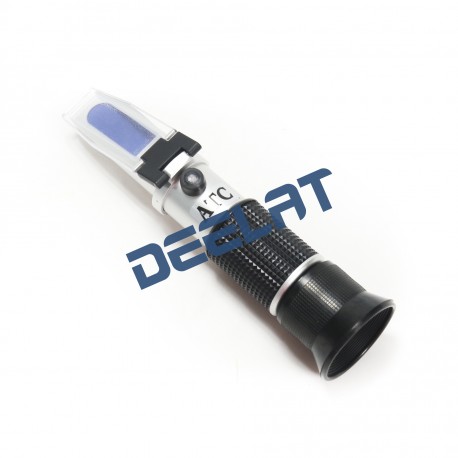

Coolant Refractometer – 1.100-1.400 sg
The coolant refractometer has a measurement range for ethylene glycol and propylene glycol of -50°C – 0°C, a range for cleaning fluids of -40°C – 0°C, and a range for battery fluids of 1.100 – 1.400 sg.
Function
The coolant refractometer is used to measure and control the concentration of coolant in various kinds of fluids in refractometry, which uses the refractive index. A small amount of a solution is inserted into the unit, and once the plastic cover is closed, an accurate reading of the coolant content is revealed by looking through the lens. The unit can be calibrated as needed using the adjustment screw.
Applications
The coolant refractometer is ideal for testing coolant concentrations in a variety of industrial refractometry applications, which utilize engine and battery-operated machinery, and for ensuring that fluids are neither too rich nor too lean in order to maximize efficiency.
Technical Details
| Certifications: | CE |
|---|---|
| Ethylene Glycol Measurement Range: | -50°C ~ 0°C |
| Propylene Glycol Measurement Range: | -50°C ~ 0°C |
| Cleaning Fluids Measurement Range: | -40°C ~ 0°C |
| Battery Fluids Measurement Range: | 1.100-1.400 sg |
| Mini. Div.: | 5°C, 0.01 sg |
| Accuracy: | 5°C, 0.01 sg |
| Brand: | Deelat Industrial |
| Warranty: | 180 Day |
