Manometer

- 35kPa Measuring Range
SKU #D1140773
View All Manometers
OR
Select BLUE dropdown(s) below.
= the combination is not available.
Selecting GREY line also resets the options.
Certified
FDA certified
Open For Business & Shipping Daily During COVID-19
Buy this product
Select filters above OR


View All Products

Price
$24000
Quantity


Payment Methods

Free shipping on
orders over $400

Payment Methods
Calculate Shipping

General Description

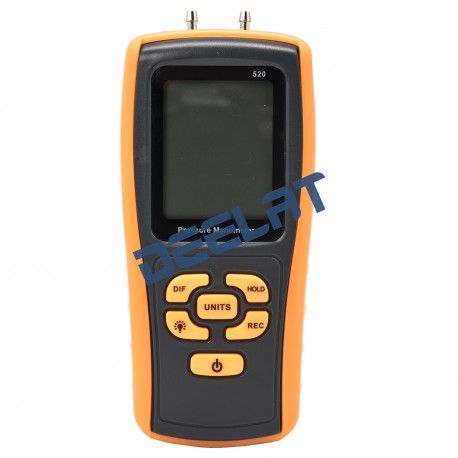

Manometer – 35kPa Measuring Range


The manometer has a 35kPa measuring range and the maximum pressure is 150kPa. The operating temperature is 32F to 122F, and the unit is battery powered.

Function
The manometer uses specialized sensors to detect and measure pressure, and the readings are then displayed on the screen of the manometer. The unit features an audible alarm and utilizes laser technology and a tri-colored lighting system for easier use.

Applications
The pressure manometer is ideal for use in a variety of applications that require measuring of air pressure, atmospheric pressure, gas pressure, static pressure, and pressure differentials, such as plumbing, electrical, and general inspection.

Technical Details

Certifications: FDA, FCC, CE, Rohs
Measuring Range: 35kPa
Accuracy: 0.3% FSO (77F)
Repeatability: 0.2% (Maximum 0.5% FSO)
Linearity/ Hysteresis: 0.29% FSO
Maximum Pressure: 150kPa
Response Time: Typical 0.5 s
Operating Temperature: 32-122F
Storage Temperature: 14F to 140F
Power: 4*1.5V AAA Battery
Brand: Deelat Industrial
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Brad K.
Nov 07, 2017

What is lowest pressure it will measure? In PSI?

Hello Brad, thank you for your question. This pressure manometer's lowest pressure reading is 0.7 PSI. The max pressure reading is 20 PSI. If you have any other questions or concerns regarding this pressure manometer please do not hesitate to contact us

Reply Deelat Industrial on Nov 08, 2017
Randy W.
Jul 13, 2018

i need to read pressure 5.5 psi for testing will this do it

Hello Randy, thank you for your question. Yes this pressure manometer will be able to read 5.5 psi no problem. the max range is up to 20 PSI.

Reply Deelat Industrial on Jul 17, 2018
James H.
Jun 17, 2020

Hi. I assume InH20 is one of the units available on the D1160812? If not, I believe it is on the D1160814, right? Thanks in advance.

Both D1160812 and D1160814 can use the unit of InH20.

Reply Deelat Industrial on Jun 19, 2020
