Formaldehyde Detector and Meter
Product Video
General Description

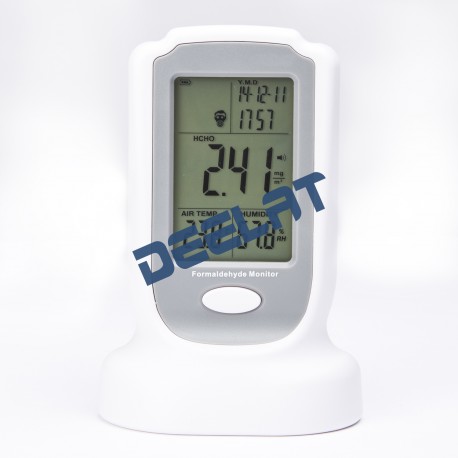

Formaldehyde Detector and Meter
The formaldehyde detector and meter has a measuring range of 0-3 mg per cubic meter with a response time of less than 30 seconds. The resolution is .01 mg per cubic meter, and the dimensions of the unit are 91.5 x 64.8 x 135 mm.
Function
The single gas detector and meter tests for the presence of formaldehyde (HCHO) in the indoor air using an internal electrochemical sensor. The display screen shows the HCHO level along with air temperature and humidity, and an alarm will sound if the presence of formaldehyde exceeds the acceptable limit. The measurement may be affected by a potential ethanol environment.
Applications
The single gas detector and meter is useful for any setting where the presence of formaldehyde is possible or suspected. The chemical is used for air quality in a number of industries, such as woodworking, carpeting, adhesives, and painting, making the detector ideal for homes, manufacturing facilities, offices, schools, and medical environments.
Technical Details
| Certifications: | FDA, FCC, CE, Rohs |
|---|---|
| Gas Tested: | HCHO In the Air |
| Measuring Range: | 0-3 mg/m3 (Measure may be affected by ethanol environment) |
| Resolution: | 0.01 mg/m3 |
| Minimum Reading: | 0.01 mg/m3 |
| Accuracy: | +/-0.03 mg/m3 or +/-5% |
| Response Time: | Less than 30 Seconds |
| Sensor Type: | Electrochemical HCHO Sensor |
| Operating Temperature: | 0~50°C |
| Operating Humidity: | 10~90% RH |
| Power: | 3 x 1.2V NIMH Batteries |
| Power Adapter: | PC 4.2V 500 mA |
| Unit Size: | 91.5*64.8*135 mm |
| Brand: | Deelat Industrial |
Do you have a question about this product?
Formaldehyde Detector and Meter The formaldehyde detector and meter has a measuring range of 0-3 mg per cubic meter with a response time of less than 30 seconds. The resolution is .01 mg per cubic meter, and the dimensions of the unit are 91.5 x...
Formaldehyde Detector and Humidity Tester The formaldehyde detector and humidity tester has a measuring range of 0-4 PPM with a response time of less than 30 seconds at 20°C for formaldehyde and 30 – 90% for humidity. The dimensions of the unit...
HVAC Duct - 16" (Diameter) * 16 ft (Length) The 16” in diameter HVAC duct has a length of 16 feet and is made out of a PVC material. It is able to endure temperatures between -4°F and +176°F. It is built with a steel wire helix frame. Function...
Portable Ventilation Fan - Diameter 11 13/16" - Single Phase - 110V The vent fan has a diameter of 11 13/16", is single phase, and the voltage is 110V. It has an air volume of 2300 cubic feet/min, and its max RPM rating is 3300 RPMs. Function...
Would the presence of phenol affect the accuracy of the formaldehyde measurement?
Hello Fred, thank you for your question. We were able to confirm that our Formaldehyde meter's accuracy would be affected by the presence of phenol. If you have any other questions or concerns please do not hesitate to contact our customer support team.
Concern about accuracy. Don't want to replace 4000 sq.ft. of chinese made flooring based on a false reading. PLease advise.
Hello Gene, thank you for your question. The meters accuracy has been tested and falls at +/-0.03 mg/m3 or +/-5%. We are aware of the issues with Chinese flooring. Our recommendation is not only to use this meter but also check with the manufacturing date of the flooring as the affected flooring was manufactured between 2012-2014.
Where can I find info on the acceptable limits of formaldyhyde?
Hello Jane, thank you for your question. We recommend to search the EPA website for the acceptable limits of formaldehyde. This link will direct you to the section on formaldehyde on the EPA site: https://www.epa.gov/formaldehyde
Does this unit have a data logger? Can I plug it into a computer to get results of tests?
Hello Sarah, thank you for your question. Unfortunately no our formaldehyde detector does not have a data logger and you are also not able to plug it into a computer to review the results.
Is this product US made? I just bought and returned a Chinese device that had very poor instructions and I was not confident of accuracy of the results.
Hello Felix, thank you for your question. This formaldehyde detector is manufactured in China but is guaranteed to be of the highest quality. This detector is is extremely accurate with an accuracy of +/-0.03 mg/m3 or +/-5%. This detector is FDA approved and FCC, CE, RoHS certified meaning you are receiving a high quality and very dependable detector.
Can I get a replacement copy of my Owner's manual for this product?
Hi Felix, thanks for your question. We have uploaded a manual for this product to this product page. You should be able to download it as a pdf. If you have any other questions or concerns please do not hesitate to contact us.
Warranty/Return policy for this product?
Hello Felix, thank you for your question. This formaldehyde detector comes with a 1 year manufacturers warranty. You also have a 30 day retrun policy with Deelat.com. If you are not happy with any product that is purchased on Deelat.com, you can return for refund within 30 days of purchase.
We have a bunch of vials that might have formaldehyde solution in them. Will your product tell me whether they have liquid formaldehyde or just alcohol?
Hello Steve, thank you for your question. The formaldehyde meter will certainly detect formaldehyde in the vials but you would need to test each vial one by one.
I need to carry it with me. Is it mobile?
Hello Cindy, thank you for your question. Yes this Formaldehyde Detector is certainly mobile. The device is designed to fit perfectly in your hand and be able to take it with you wherever you go.
Does it detect other vapor? Where can I find FDC approval for this device? Does it come with battery?
Hello Pei, thank you for your question. No our formaldehyde detector does not detect any other vapor other than formaldehyde. The formaldehyde detector is not FDC approved but is FDA, FCC, CE and RoHS certified. The formaldehyde monitor is battery powered but can also be plugged into an outlet as well.
We need to run a test for several hours. During this test, there may be a release of formaldehyde. Can we leave the sensor running over a few days? Or is it more of a 'use for 5 minutes after testing is done' type of sensor?
Hello Christian, thank you for your question. You will be able to use this formaldehyde detector for your test. There will be no issues whatsoever running this formaldehyde detector for a few days. If you have any other questions or concerns please do not hesitate to contact our customer support staff.
Does the sensor go bad or is there replacement parts for it
Hello Chris, thank you for your question. This formaldehyde detector is expected to last up to 10 years and the only thing that should have to be replaced during that time are the batteries. We do not offer any kind of replacement parts for this detector.
What is the calibration procedure for this product?
Hello Jasper, thank you for your question. The calibration procedure for our formaldehyde and humidity tester is explained in the user manual provided inside the box. If you missed placed the manual please contact our customer support team with an email and we will gladly send you a PDF copy. unfortunately we cannot do that through our Q&A section.
