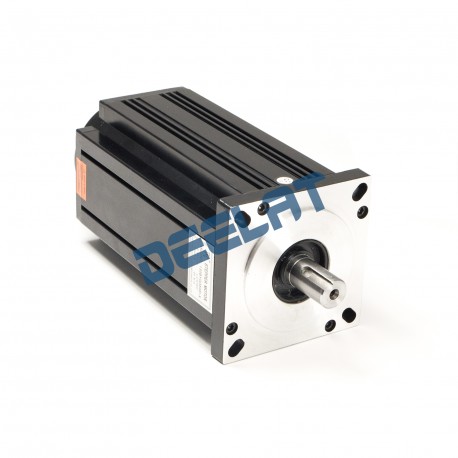

Stepper Motor – 3-Phase - 36.88 ft lbs, 10.67" Length

SKU #D1156516
View All Stepper Motors
OR
Select BLUE dropdown(s) on the right.
= the combination is not available.
Selecting GREY line also resets the options.
Certified
CE certified

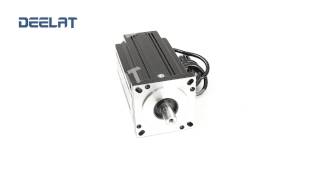

Product Video

3-Phase Stepper Motor
Open For Business & Shipping Daily During COVID-19
Buy this product
Select filters above OR


View All Products

Price
$50830
Quantity


Payment Methods

Payment Methods

General Description

Stepper Motor – 3-Phase - 36.88 ft lbs, 10.67" Length


The stepper motor is 3-phase with a holding torque of 36.88 ft lbs, and the overall length of the unit is 10.67". The stepper motor also has a splashproof construction.

Function
The step motor has an internal shaft attached to a gear that moves in discrete angular steps when activated by an electrical impulse. The electrical input powers a series of electromagnets that attract the gear’s teeth, which enables the motor to turn in a controlled and precise way.

Applications
The step motor is ideal for the power supply in any application where precise motor synchronization is needed, such as in the auto industry for windshield wiper motors, the medical industry for scanners and pumps, and in office machines such as copiers or printers, including 3D printers.

Technical Details

Certifications: CE, Rohs
Length (in): 10.67"
Phase: 3
Holding Torque (ft lbs): 36.88 ft lbs
Phase Inductance (mH): 18.3
Protect Feature: Splashproof
Temperature Rise: 80 Max
Phase Resistance: 0.99
Rotor Inertia (Kg.cm2): 47.3
Rated Current (A): 6.8
Weight (lbs): 45.19
Insulation Class: B
Insulation Resistance: 100 Mohm; 500V DC
Brand: Deelat Industrial
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Jorge M.
Jun 28, 2017

What voltage does this stepper motor run on?

Hello Jorge, thank you for your question. This stepper motor runs off of 220 AC. If you have any other questions or concerns please do not hesitate to contact us at 1-888-667-5776

Reply Deelat Industrial on Jun 28, 2017
PYROTECH U.
Mar 16, 2020

What is the driver of this stepper motor, D1156485?

This D1156485 stepper motor has a driver with 6n.m of torque and voltage of 60v.

Reply Deelat Industrial on Mar 18, 2020
PYROTECH U.
Mar 16, 2020

Is the size of the D1156485 stepper motor actually 15mm?

The size of the D1156485 stepper motor is 115mm. We were given an incorrect value and we have made immediate corrections to the listing.

Reply Deelat Industrial on Mar 18, 2020
