Pneumatic Riveter
- 3/16", 700 RPM - Quick Change
Product Video
General Description

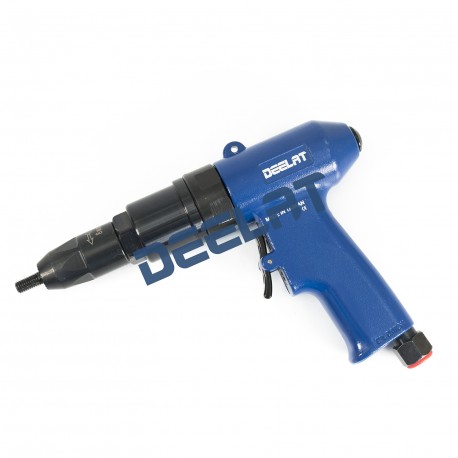

Pneumatic Riveter – 3/16", 700 RPM - Quick Change
The rivet tool has a head size of 3/16" and a freeload speed of 700 RPMs. The overall length of the tool is 200 mm, and the tool utilizes a quick change head design for swapping mandrel sizes.
Function
The pneumatic riveter is powered via air pressure fed into the bottom of the tool. A rivet nut is threaded onto the head and inserted into a determined hole. The tool is then activated, collapsing the rivet nut and securing it tightly to the material around it. The setter then spins out of the threaded hole.
Applications
The rivet gun works well for any context in which rivet nuts are needed, such as construction, metal fabrication, the automotive and aeronautics industries, and electronics. The pneumatic function makes the tool especially useful for cases where setting many rivet nuts is required.
Technical Details
| Certifications: | CE |
|---|---|
| Size: | 3/16" |
| Compatible Heads: | M3 (D1155292) | M4 (D1171739) | M5 (D1155293) | M6 (D1171740) | 1/4"(D1774340) | 3/16"(D1774700) |
| Structure: | Gear |
| Free Load Speed: | 700 rpm |
| Feature: | Quick Change Head |
| Air Consumption: | 198 L /min |
| Overall Length: | 200 mm |
| Air Inlet: | P.T 1/4" |
| Threading: | UNC |
| Net Weight: | 1.26 kg |
| Air Pressure: | at 90 PSI, 6.2 bar, 6.3kg/cm |
| Brand: | Deelat Industrial |
Do you have a question about this product?
Pneumatic Riveter – 3/16", 700 RPM - Quick Change The rivet tool has a head size of 3/16" and a freeload speed of 700 RPMs. The overall length of the tool is 200 mm, and the tool utilizes a quick change head design for swapping mandrel sizes....
PVC Flexible Duct – 12” (Diameter) * 25ft (Length) The 12” in diameter PVC duct has a length of 25 feet and is made out of a PVC material. It is able to endure temperatures between -4°F and +176°F. It is built with a steel wire helix frame....
Heat Resistant Duct - 16" (Diameter) x 25 ft (Length) - 250°F The heat and high temperature resistant duct is 16” in diameter and has a length of 25 feet. It can endure a temperature range of -58°F up to 250°F. Function The high temperature...
Air Pull Rivet-Nut Head – M6 – Quick Change The air pull rivet nut head has a size of M6 and is intended as a clip on head, used with an air rivet nut pull setter. Specifically, it is compatible with D1774131, D1774132, D1774134, and D1774135....
Pneumatic Riveter – M6, 2700 RPM The rivet tool has a head size of M6 and a freeload speed of 2700 RPMs. The overall length of the tool is 230 mm. Function The pneumatic riveter is powered via air pressure fed into the bottom of the tool. A...
Air Pull Rivet-Nut Head – M5 – Quick Change The air pull rivet nut head has a size of M5 for a clip on head, used with an air rivet nut pull setter. Specifically, it is compatible with D1774131, D1774132, D1774133, D1774134, and D1774135....
Pneumatic Riveter - 6mm - Handheld The rivet tool has a 6 millimeter nozzle size, a 90-degree-angle headpiece and a freeload speed of 1600 RPMs. The overall length of the tool is 270 mm, and it utilizes a rear air exhaust. Function The...
Pneumatic Riveter – M3, 2700 RPM The rivet tool has a head size of M3 and a freeload speed of 2700 RPMs. The overall length of the tool is 230 mm. Function The pneumatic riveter is powered via air pressure fed into the bottom of the tool. A...
Air Pull Rivet-Nut Head – 1/4" – Quick Change The air pull rivet nut head has a size of 1/4" for a clip on head, used with an air rivet nut pull setter. Specifically, it is compatible with D1774131, D1774132, D1774134, and D1774135. Function...
Pneumatic Riveter – M8, 450 RPM The rivet tool has a head size of M8 and a freeload speed of 450 RPMs. The overall length of the tool is 210 mm. Function The pneumatic riveter is powered via air pressure fed into the bottom of the tool. A...
Air Pull Rivet-Nut Head - 1/4" - Screw On The air pull rivet nut head has a size of 1/4" and is intended as a screw on head, used with an air rivet nut pull setter. Specifically, it is compatible with D1171691, D1151470, D1151472, D1151471,...
Pneumatic Riveter – M8, 2700 RPM The rivet tool has a head size of M8 and a freeload speed of 2700 RPMs. The overall length of the tool is 230 mm. Function The pneumatic riveter is powered via air pressure fed into the bottom of the tool. A...
What is the thread size?
Hello Ron, thank you for question. D1774136 has a thread size of 1/4 20. If you need a different thread size or have any other questions or concerns please do not hesitate to contact our customer support team.
Can this do stainless steel M8 rivnuts?
Hi Cameron, thanks for your question. Unfortunately, this nut setter cannot be used on stainless steel. If you have any other questions or concerns about our products, please do not hesitate to ask.
Can I get 1/4 and 5/16 mandrels added to this product?
Hello Walter, thank you for your question. Yes you can purchase a 1/4" and 5/16" head for this air nut setter. Please purchase D1775387 and D1775391 along with this air nut setter.
I am installing Rive Nuts, 1/4x20 thru .20" metal. Which Rivet Nut gun do you recommend?
Hi Thomas, thanks for your question. The 1/4"x20 measurement is UNC , and for that we have 1/4" air rivet nut setters like #D1774134. The metric conversion for that rivet size is M6, which we have several of as well (e.g., #D1151468). In terms of the material you are riveting, you will have to check to see if the rivet size you've selected has the right grip range. It looks like 1/4"-20 UNC has a grip range of 0.04 to 0.14 inches. If you have any other questions or concerns please do not hesitate to contact us.
Does this do more than one size?
Hello Patrick, thank you for your question. Yes this Pneumatic Air Rivet Nut Setter is capable of changing the nut head to a variety of sizes using the same gun. The gun features a quick release head that allows you to quickly changes the size of the nut head. Please contact us to go over all the different size heads that will work with this Pneumatic Air Rivet Nut Setter.
Hi there. Does this tool work well with M10 stainless steel nutserts?
This pneumatic riveter cannot work with M10 stainless steel. This product works with aluminum, copper, steel and iron nutserts. Please try our D1151473 air hydraulic rivet nut tool instead.
Is the head on the nut setter interchangeable?
Hello Jose, thank you for your question. Yes the head on this nut setter is certainly interchangeable. This gun uses screw on heads and replacement heads can be found in out nut setter head section. The compatible head sizes for this nut pull setter are screw on M3, M4, M5, & M6
Can you get an 8-32 mandrel for this tool?
Hi Jerry, thank you for your interest in our products. Yes, you can get an 8-32 mandrel for the tool. The minimum order quantity is 10 pieces.
Do you guys stock a head for a #10 thread?
To check current stock, please contact the customer support number at the top of the page.
this product come with a quick change mandrel,SKU #D1774135 are other mandrel sizes available 10-24, 1/4-20, .....
Hello Michael, thank you for your question. Hes we sell many different size heads for our quick change pneumatic rivet nut setter. Please click the link to be directed to the heads https://www.deelat.com/pneumatics/pneumatic-tools/pneumatic-air-riveters-and-nut-tools/nut-heads/#filters=21519
I'm looking for a tool for smaller applications. 10-24 and some 1/4-20, do you have items similar to this?
Thanks for your interest in our products, Jerry. We do not have size 10-24 at the moment, but we might be able to source one for you if you can provide a model number and we can agree on a minimum order quantity. Contact our sales team at 1-888-667-5776 if you are interested! As for 1/4-20 applications, you can take a look at D1774130, D1774131, D1774134 and D1774136.
Hi, Does the Deelat range (D1151430 - Handheld), (D1151475 - 700RPM), (D1151466 - 2700RPM) rely on the operator to stop the tool when the rivet nut is installed? Other tools / competitors, such as the FAR range, have a fixed stop.
Our pneumatic riveters use the rotation of gears to install the rivet nut, and the tool will stop automatically when the rivet nut is installed.
is there ther size mandrell
Hello Michael, thank you for your question. Unfortunately we are not too sure what your question is. The mandrel size that comes with this pneumatic nut setter is 5/16". We offer many different sizes as well.
what are the 4 speeds of the tool #D1774136 with the speed selector ?
The four speeds on D1774136 are used to adjust the torque of the tool when working with different sizes of rivets. For more information on the specific speeds, please contact our customer service team.
Where can I buy spare 1/4"x 20 mandrels for Rivet Nut Setter Sku# D1774131?
Hello Shawne, thank you for your email. The replacement mandrel for this gun can be purchased on our website. Please look up SKU# D1774340 for the replacement mandrel. If you have any other questions or concerns please do not hesitate to contact us at 1-888-667-5776
We require a rivet nut setter for McMaster Carr nos. 93669A120 (thread 10-24) and 93669A210 (thread 8-32). Suggestions?
Hello Gary, thank you for your question. We currently do not offer those part#s, we have all our product listings on the site already. We are frequently updating out inventory and product offerings. Please check back with us in the near future as we might have what you are looking for available.
Does this Nut Setter specified to work with stainless steel rivet nuts?
Hi Ced, thanks for your question. Unfortunately, this nut setter cannot be used on stainless steel. If you have any other questions or concerns about our products, please do not hesitate to ask.
How do I get a parts breakdown for this item, and is there a model number for this gun.
Hello Tony, thank you for your question. I can certainly provide the parts list and a schematic drawing of the gun. Please email us at sales@deelat.com and we can send that your way no problem.
Where can we purchase this product?
Hello Kyle, thank you for your question. You can purchase our Deelat branded pneumatic Air nut setter directly on our website deelat.com or you can call in and order it over the phone with one of our customer support team members. Deelat branded tools are only available through us.
Is there a left hand thread tool?
Thanks for your interest in our air rivet nut setters, Alan. Unfortunately, we do not have left hand thread tools. If you have any other questions or concerns please do not hesitate to contact us.
Is there a model that will work for 10-32, 8-32 and 6-32?
Hello Brian, yes we do have all those models available. They are listed as 5/16", 1/4" and 3/16". Click the yellow "show all" button a the top right of this page and then click the filters for measurement on the left navigation of the category page.
Can this nut setter be used with 1/4-20 Rivets?
Hello Ricardo, thank you for your question. Yes all the nut setter models are UNC (Course Threaded). 1/4-20 rivets should be suitable for this model. If you have any other questions or concerns please contact our friendly customer support staff at 1-888-667-5776.
will this tool install Chrysler rivnut part# 6509876AA. The thread inside the rivnut is 6mmX1
Hello Mike, thank you for your question. Unfortunately this Air Rivet Nut Setter is not compatible with the Chrysler Rivet nut you mention.
What does it cost?
Hi, Joseph. The price is $261.90 plus shipping. If you need assistance with your purchase, please call our sales team at 1-888-667-5776 or email at sales@deelat.com!
