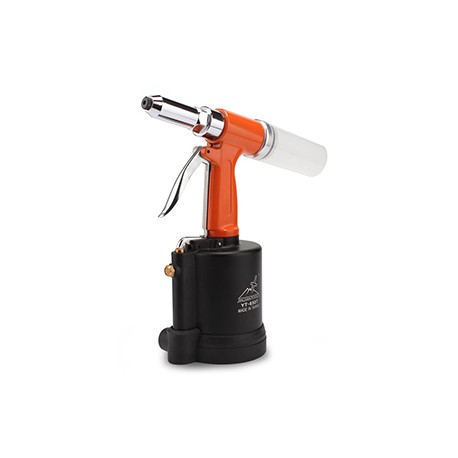

Pneumatic/Hydraulic Riveter Gun
- 3.2 to 6.4 mm - 3 Jaw
General Description
Pneumatic/Hydraulic Riveter Gun - 3.2 mm to 6.4 mm - 3 Jaw Hydraulic
The pneumatic nut riveter gun supports rivet capacities of 3.2 - 6.4 mm. The tool has a working stroke of 17 mm, and the tool has 3 jaws.
Function
The pneumatic nut riveter gun uses a hydraulic system and is powered via air pressure fed into the bottom of the tool. A rivet is inserted into the head of the riveter, and the tool is then aimed at a predrilled hole. Once the head is aligned with the hole, the riveter is triggered and immediately locks the mandrel to the body, cuts the mandrel, and deploys the rivet, creating a secure bond.
Applications
The pneumatic nut riveter guns are ideal power hand tools for any context in which rivets are needed, such as construction, metal fabrication, the automotive and aeronautics industries, and woodworking. The pneumatic function makes the tool especially useful for cases where installing many rivets is required. Nut inserts not included.
Technical Details
| Certifications: | CE |
|---|---|
| Size: | 3.2 mm to 6.4 mm |
| Rally: | 2500 Kgs |
| Working Stroke: | 17 mm |
| Operating Range: | 3.2-4.0-4.8-6.4mm |
| Air Intake: | 1/4" |
| Working Pressure: | 90 PSI |
| Weight: | 1.6 Kg |
| Brand: | Deelat Industrial |
Do you have a question about this product?
Pneumatic/Hydraulic Riveter Gun - 3.2 mm to 6.4 mm - 3 Jaw Hydraulic The pneumatic nut riveter gun supports rivet capacities of 3.2 - 6.4 mm. The tool has a working stroke of 17 mm, and the tool has 3 jaws. Function The pneumatic nut riveter...
Pneumatic/Hydraulic Riveter Gun - 2.4 mm, 3.2 mm, 4 mm, 4.8 mm - 3 Jaw - Blue The pneumatic nut riveter gun has nose pieces supporting rivet capacities of 2.4, 3.2, 4, and 4.8 mm. The air consumption is 1.4 L/min, and the tool has 3 jaws. The...
Pneumatic/Hydraulic Riveter Gun - 1/8", 5/32", 3/16" (3.2 mm, 4 mm, 4.8 mm) The pneumatic nut riveter gun has rivet capacity settings of 1/8”, 5/32”, 3/16” (3.2, 4, 4.8 mm) and the air consumption is 138 L/min. The tool has a traction power of...
Pneumatic/Hydraulic Riveter Gun - 3/32", 1/8", 5/32", 3/16" (2.4 mm, 3.2 mm, 4 mm, 4.8 mm) The pneumatic nut riveter gun has rivet capacity settings of 3/32”, 1/8”, 5/32”, 3/16” (2.4, 3.2, 4, 4.8 mm) and the air consumption is 170 L/min. The...
Pneumatic/Hydraulic Riveter Gun - 3/32" to 3/16" - 3 Jaw The pneumatic nut riveter gun has a rivet capacity of 3/32” to 3/16” (2.4-4.8 mm) and the air consumption is 3.5 CFM. The tool has 3 jaws, and its total weight is 1.55 kg. Function The...
PVC Flexible Duct – 8" (Diameter) * 25ft (Length) The 8” in diameter PVC duct has a length of 25 feet and is made out of a PVC material. It is able to endure temperatures between -4°F and +176°F. It is built with a steel wire helix frame....
Pneumatic/Hydraulic Nut Riveter Gun - 1/8" to 15/32", 2700 RPM The pneumatic nut riveter gun supports rivet capacities of 1/8" to 15/32". The tool has a working stroke of 6 mm. Function The pneumatic nut riveter gun uses a hydraulic system...
Pneumatic/Hydraulic Riveter Gun - 2.4 mm, 3.2 mm, 4 mm, 5 mm - 2 Jaw - Black The pneumatic nut riveter gun has nose pieces supporting rivet capacities of 2.4 mm, 3.2 mm, 4 mm, and 5 mm. The air consumption is 4 CFM, and the tool has 2 jaws. The...
Pneumatic/Hydraulic Riveter Gun - 1/8" to 15/32", 1200 RPM The pneumatic/hydraulic riveter gun has rivet settings of 3 to 12mm and the free load speed is 1200 RPMs. The overall length of the tool is 278 mm. Function The pneumatic nut riveter...
Pneumatic/Hydraulic Riveter Gun - 1/4"– 3 Jaws The pneumatic nut riveter gun has a rivet capacity of 3/32” to ¼” (2.4 to 6.4 mm) and the air consumption is 4.2 CFM. The tool has 3 jaws, and its total weight is 2 kg. Function The pneumatic nut...
Lay Flat Ducting - 328 ft (Length) * 9 27/32" (Diameter) The plastic film air duct has a diameter of 9 27/32” and a length of 328 feet along with a positive pressure rating of 1000pa. The thickness of the film air duct is 1/64". Function One...
Pneumatic/Hydraulic Riveter Gun - 3/32", 1/8", 5/32", 3/16", 7/32", 1/4" (2.4 mm, 3.2 mm, 4 mm, 4.8 mm, 5.6 mm, 6.4 mm) The pneumatic nut riveter gun has rivet capacity settings of 3/32”, 1/8”, 5/32”, 3/16”, 7/32”, ¼” and the air consumption is...
Does this riveter come with any extra nose pieces?
Hello Ronnie, thank you for your question. Yes this 3 jaw riveter does in fact come with extra nose pieces. They are found screwed on to the underside of the riveter. IF you have any other question please do not hesitate to contact us!
Can this tool fasten a m5 rivet nut?
Hi Yves, thanks for your question. Yes, this tool can fasten an M5 rivet nut. If you need assistance with your purchase, please call our sales team at 1-888-667-5776 or email at sales@deelat.com!
How do you fill the pneumatic rivet gun with oil?
The dedicated hydraulic oil is fully filled when the gun leaves the factory, and it won't reduce with normal use. Therefore, there is no need to fill the gun, and it does not have a function for you to do so.
How much air consumption is in the CFM for this product?
Thanks for your question. It consume around 0.05CFM.
