Pneumatic/Hydraulic Riveter Gun

- 2.4 mm, 3.2 mm, 4 mm, 4.8 mm - 3 Jaw - Blue
SKU #D1172467
View All Pneumatic / Hydraulic Nut Riveter Guns
OR
Select BLUE dropdown(s) below.
= the combination is not available.
Selecting GREY line also resets the options.
Certified
CE certified

Product Video

Pneumatic Nut Riveter Gun - 2.4 mm, 3.2 mm, 4 mm, 4.8 mm - 3 Jaws (Hydraulic) - Blue
Open For Business & Shipping Daily During COVID-19
Buy this product
Select filters above OR


View All Products

Price
$8650
Quantity


Payment Methods

Payment Methods

General Description

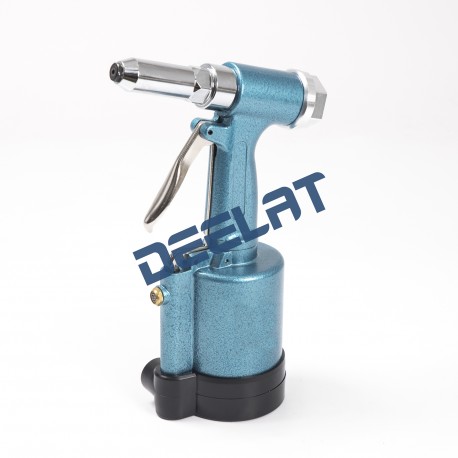

Pneumatic/Hydraulic Riveter Gun - 2.4 mm, 3.2 mm, 4 mm, 4.8 mm - 3 Jaw - Blue


The pneumatic nut riveter gun has nose pieces supporting rivet capacities of 2.4, 3.2, 4, and 4.8 mm. The air consumption is 1.4 L/min, and the tool has 3 jaws. The color of the riveter is blue.

Function
The pneumatic nut riveter gun uses a hydraulic system and is powered via air pressure fed into the bottom of the tool. A rivet is inserted into the head of the riveter, and the tool is then aimed at a predrilled hole. Once the head is aligned with the hole, the riveter is triggered and immediately locks the mandrel to the body, cuts the mandrel, and deploys the rivet, creating a secure bond.

Applications
The pneumatic nut riveter guns are ideal power hand tools for any context in which rivets are needed, such as construction, metal fabrication, the automotive and aeronautics industries, and woodworking. The pneumatic function makes the tool especially useful for cases where installing many rivets is required. Nut inserts not included.

Technical Details

Certifications: CE
Color: Blue
Stoke: 18 mm
Height: 250 mm
Accessories: 3 Jaws, two wrenches, Direction-turned
Nose Piece: 2.4 mm, 3.2 mm, 4 mm, 4.8 mm
Air inlet: 1/4"
Air Consumption: 1.4 L/min
Weight: 1.55 kg
Brand: Deelat Industrial
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Ronnie S.
Aug 10, 2017

Does this riveter come with any extra nose pieces?

Hello Ronnie, thank you for your question. Yes this 3 jaw riveter does in fact come with extra nose pieces. They are found screwed on to the underside of the riveter. IF you have any other question please do not hesitate to contact us!

Reply Deelat Industrial on Aug 10, 2017
Yves B.
Jul 02, 2019

Can this tool fasten a m5 rivet nut?

Hi Yves, thanks for your question. Yes, this tool can fasten an M5 rivet nut. If you need assistance with your purchase, please call our sales team at 1-888-667-5776 or email at sales@deelat.com!

Reply Deelat Industrial on Jul 04, 2019
Bryan D.
Jun 03, 2020

How do you fill the pneumatic rivet gun with oil?

The dedicated hydraulic oil is fully filled when the gun leaves the factory, and it won't reduce with normal use. Therefore, there is no need to fill the gun, and it does not have a function for you to do so.

Reply Deelat Industrial on Jun 11, 2020
