Pneumatic/Hydraulic Riveter Gun- 3/32", 1/8", 5/32", 3/16" (2.4 mm, 3.2 mm, 4 mm, 4.8 mm)
Open For Business & Shipping Daily During COVID-19
Pneumatic/Hydraulic Riveter Gun - 3/32", 1/8", 5/32", 3/16" (2.4 mm, 3.2 mm, 4 mm, 4.8 mm)

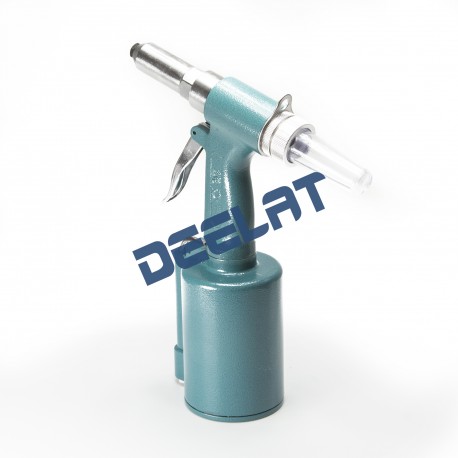

The pneumatic nut riveter gun has rivet capacity settings of 3/32”, 1/8”, 5/32”, 3/16” (2.4, 3.2, 4, 4.8 mm) and the air consumption is 170 L/min. The tool has a traction power of 1950 lbs and a total length of 230 mm.
The pneumatic nut riveter gun uses a hydraulic system and is powered via air pressure fed into the bottom of the tool. A rivet is inserted into the head of the riveter, and the tool is then aimed at a predrilled hole. Once the head is aligned with the hole, the riveter is triggered and immediately locks the mandrel to the body, cuts the mandrel, and deploys the rivet, creating a secure bond.
The pneumatic nut riveter guns are ideal power hand tools for any context in which rivets are needed, such as construction, metal fabrication, the automotive and aeronautics industries, and woodworking. The pneumatic function makes the tool especially useful for cases where installing many rivets is required. Nut inserts not included.
|Blind Rivet Setting Capacity (Aluminum & Steel)|
|2.4, 3.2, 4, 4.8 mm (3/32", 1/8", 5/32", 3/16")|
|Traction Power:||1950 lbs|
|Stroke Length:||14 mm|
|Air Consumption:||170 L / Min|
|Overall Length:||230 mm|
|Air Inlet:||P.T 1/4"|
