Air Powered Tapping Gun

- M10 - 100 RPM
SKU #D1151499
View All Air Powered Tapping Guns
OR
Select BLUE dropdown(s) below.
= the combination is not available.
Selecting GREY line also resets the options.
Certified
CE certified

Product Video

Pneumatic Tapping Gun - M10 - 100 RPM
Open For Business & Shipping Daily During COVID-19
1 Item in Stock
Select filters above OR


View All Products

Price
$39130
Quantity


Payment Methods

Free shipping on
orders over $400

Payment Methods
Calculate Shipping

General Description

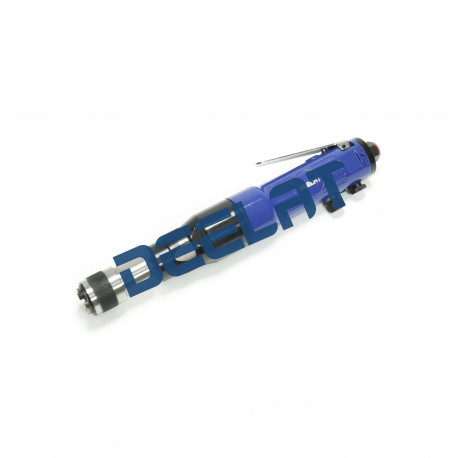

Air Powered Tapping Gun - M10 - 100 RPM


The air powered tapping gun has a tapping capacity of M10 along with a freeload speed of 100 RPMs. The overall length of the unit is 310 mm.

Function
The pneumatic gun is powered via air pressure fed into the bottom of the tool. The pneumatic tool is used for the process of creating threads, specifically the nut, which is the female portion of the mating pair. Whenever the tap is properly aligned with a pre-formed hole, the trigger activates the gun, cutting the threads as required.

Applications
These air tools can be used in automotive, industrial and engineering applications, and in general for any environment where tapping tools are necessary.

Technical Details

Certifications: CE
Tapping Capacity: M10
Steel Tapping Capacity: 10mm
Aluminum Tapping Capacity: 12mm
Weight: 1.86kg/ 4.1lb
Free Load Speed: 100 RPM
Air Consumption: 226 L / Min
Overall Length: 310 mm
Air Inlet: P.T 1/4"
Style: Rear Exhaust
Sound Level: 87 dB(A)
Brand: Deelat Industrial
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Terry P.
Jun 20, 2018

Can I just buy a replacement head for this gun? I am looking for both 1/4-20 and 10-24

Hello Terry, thank you for your question. Yes we are certainly able to provide replacement heads for any of our pneumatic tapping guns. Please contact our customer support staff to help you place the order

Reply Deelat Industrial on Jun 25, 2018
Phil H.
Dec 26, 2018

In operation have is the tap reversed to get it out of the hole?

Hello Phil, thank you for your question. Yes this tapping gun does have a reverse on the trigger to remove it from the hole. If you have any other questions or concerns please do not hesitate to contact us.

Reply Deelat Industrial on Jan 07, 2019
Phil H.
Jan 02, 2019

In operation how is the tap reversed to get it out of the hole? Do you pull on it to get it to reverse or do you have to actuate a reverse button to reverse it?

Hello Phil, thank you for your question. There is a "reverse" button on the tapping gun. All you need to do is press the reverse button and it will tap in reverse.

Reply Deelat Industrial on Jan 08, 2019
Ed D.
Feb 10, 2019

How does this tool reverse?

Hello Ed, thank you for your question. The tapping gun's trigger has a forward and reverse option. The tool can easily be set to reverse with the press of your finger.

Reply Deelat Industrial on Feb 20, 2019
Carlo V
Aug 29, 2017

Does this tapping gun have a forward and reverse trigger?

Hello Carlo, thank you for your question. Yes this tapping gun does come with a forward and reverse trigger. If you would like to go forward you will press the top trigger, If you would like to go reverse you press the bottom trigger. If you have any other questions please contact our customer support team.

Reply Deelat Industrial on Aug 29, 2017
Ken J.
Mar 15, 2019

Collets for Sku # D1151499 Sizes needed for the tapping gun 1/4 20 / 10 32 / M4 -7 / M8 - 1.25

Hi Ken, thanks for your interest in our products. SKU# D1151499 can be used with M3, M4, M5, M6, M8, M10 and M12 sized only. If you have any other questions or concerns please do not hesitate to contact us.

Reply Deelat Industrial on Mar 26, 2019
Ryan O
Aug 29, 2017

Will it handle up to a 1/4-20 tap?

Hello Ryan, thank you for your question. Yes our M6 Pneumatic Tapping Gun will certainly be able to handle a 1/4-20 tap. If you have any other question or need a different size please contact our customer support team for help.

Reply Deelat Industrial on Aug 29, 2017
Deb S.
Aug 05, 2019

What is the maximum size chuck or bit can we use with this tool?

Hi Deb, thanks for your question. The maximum bit size usable with this tool is 3mm. If you need assistance with your purchase, please call our sales team at 1-888-667-5776 or email at sales@deelat.com!

Reply Deelat Industrial on Aug 06, 2019
tim t.
Sep 13, 2017

do i need to purchase anything else to attach a 3/8 16 tap to this unit

Hello Tim, thank you for your question. Yes you will to purchase an adapter specifically for this gun. Please contact are customer support team to assist you on what else is need attached the 3/8 16 tap

Reply Deelat Industrial on Sep 19, 2017
John P.
Sep 30, 2019

Can the torque be controlled to prevent tool breakage at the bottom of a hole?

This air tapping gun does not have the capability to control the torque. Our MPN OP-B12B may meet your requirement instead.

Reply Deelat Industrial on Oct 02, 2019
Fred S.
May 25, 2018

Does this go forward when pushed and reverse when pulled?

Hello Fred, thank you for your question. Yes the trigger on the gun has a forward button and a reverse. It is very easily switched back and forth with the pull of a finger.

Reply Deelat Industrial on May 28, 2018
Stephen J.
Jun 19, 2020

On the side of the collett ... what is the "OPEN" part used for?

There is a screw there on all our air tapping guns to lock the nut.

Reply Deelat Industrial on Jun 25, 2020
