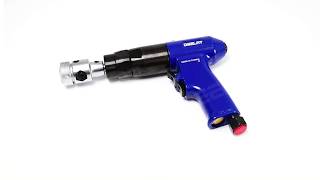

Air Powered Tapping Gun - 3-12mm - 150 RPM
The air powered tapping gun has a tapping capacity of 3 -12 mm along with a freeload speed of 150 RPMs. The overall length of the unit is 200 mm. The customer may choose one (1) of the following tap sizes to be included with each purchase of D1151498 Air Tapping Gun: M3, M4, M5, M6, M8, M10 and M12. Other sizes can be purchased separately.
The pneumatic gun is powered via air pressure fed into the bottom of the tool. The pneumatic tool is used for the process of creating threads, specifically the nut, which is the female portion of the mating pair. Whenever the tap is properly aligned with a pre-formed hole, the trigger activates the gun, cutting the threads as required.
These air tools can be used in automotive, industrial and engineering applications, and in general for any environment where tapping tools are necessary.
|Tapping Capacity:||3 - 12 mm|
|Steel Tapping Capacity:||8mm|
|Aluminum Tapping Capacity:||12mm|
|Free Load Speed:||150 RPM|
|Air Consumption:||184 L / Min|
|Overall Length:||200 mm|
|Air Inlet:||P.T 1/4"|
|Sound Level:||82 dB(A)|
