Pneumatic Air Cylinder- Double Acting - 3" Bore x 35" Stroke - Pull Rod Type - SI
Open For Business & Shipping Daily During COVID-19

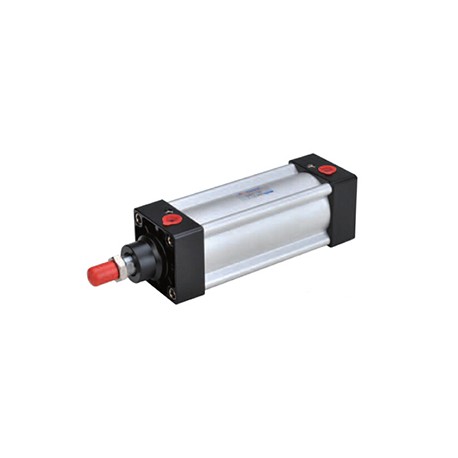

Pneumatic Air Cylinder – Double Acting – 3" Bore x 35" Stroke – Pull Rod Type – SI
This standard double action SI air piston is a pull rod type. The bore is 3" and the stroke is 35". Like all of Deelat’s types of cylinders, it is made from the highest professional-grade materials.
The pneumatic air cylinder uses compressed air acting on a piston inside a cylinder to move a load along a linear path. The double acting piston has two separate ports to extend and retract the piston.
These air piston products are types of cylinders utilized in a variety of industrial sectors, factory automation and packaging, as well as transportation and life science applications. It is especially useful in areas where non-contamination is a priority, since the pneumatic piston does not leak fluids.
|Size:||79.3" x 3.7" x 3.7"|
|Motion Pattern:||Double Action|
|Operating Pressure Range:||1.0-9.0 Mpa|
|Ensured Pressure Resistance:||13.5Mpa|
|Operating temperature Range:||23-158F|
|Operating Speed Range:||2"-31.5"/s|
|Buffer Type:||Adjustable Buffer|
|Max Air Pressure:||8 kg/cm|
