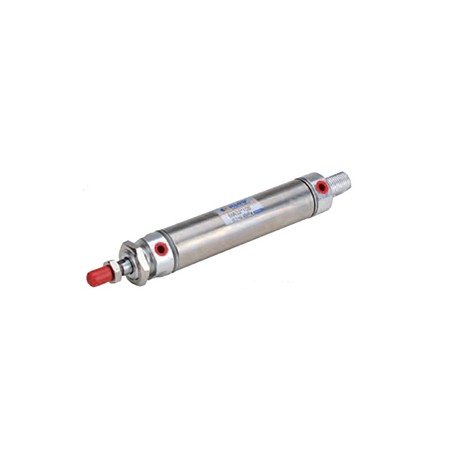

Pneumatic Air Cylinder – Double Acting – 1" Bore x 3" Stroke – Mini – MA
This standard double action MA air piston is a mini type. The bore is 1" and the stroke is 3". Like all of Deelat’s types of cylinders, it is made from the highest professional-grade materials.
The pneumatic air cylinder uses compressed air acting on a piston inside a cylinder to move a load along a linear path. The double acting piston has two separate ports to extend and retract the piston.
These air piston products are types of cylinders utilized in a variety of industrial sectors, factory automation and packaging, as well as transportation and life science applications. It is especially useful in areas where non-contamination is a priority, since the pneumatic piston does not leak fluids.
|Size:||8.5" x 1.1" x 1.3"|
|Motion Pattern:||Double Acting|
|Operating Voltage Range:||1.0-9.0 kg f/cm|
|Ensured Pressure Resistance:||13.5kgf/cm|
|Operating temperature Range:||23-158F|
|Operating Speed Range:||2"-31.5"/s|
|Buffer Type:||Buffer Spacer|
|Max Air Pressure:||8 kg/cm|
