Pneumatic Air Cylinder

- Double Acting - 1.25" Bore x 24" Stroke - Pull Rod Type - DNC
SKU #D1157233
View All Pneumatic Air Cylinders
OR
Select BLUE dropdown(s) below.
= the combination is not available.
Selecting GREY line also resets the options.
Open For Business & Shipping Daily During COVID-19
Buy this product
Select filters above OR


View All Products

Price
$7460
Quantity


Payment Methods

Free shipping on
orders over $400

Payment Methods
Calculate Shipping

General Description

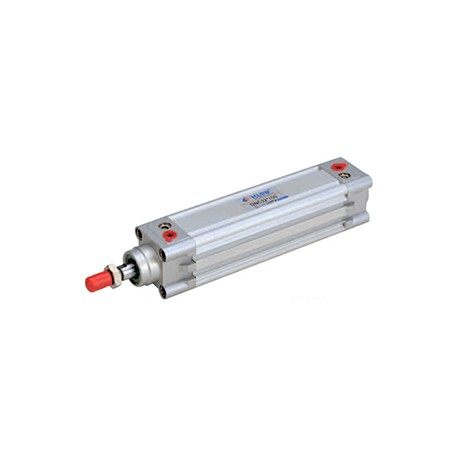

Pneumatic Air Cylinder – Double Acting – 1.25" Bore x 24" Stroke – Pull Rod Type – DNC


This standard double action DNC air piston is a pull rod type. The bore is 1.25" and the stroke is 24". Like all of Deelat’s types of cylinders, it is made from the highest professional-grade materials.

Function
The pneumatic air cylinder uses compressed air acting on a piston inside a cylinder to move a load along a linear path. The double acting piston has two separate ports to extend and retract the piston.

Applications
These air piston products are types of cylinders utilized in a variety of industrial sectors, factory automation and packaging, as well as transportation and life science applications. It is especially useful in areas where non-contamination is a priority, since the pneumatic piston does not leak fluids.

Technical Details

Size: 5.7" x 4.7" x 4.7"
Motion Pattern: Double Action
Working Medium: Filtered Air
Min Operating Pressure: 0.1 MPa
Max Operating Pressure: 1.0 MPa
Compression Pressure: 1.5Mpa
Ambient Temperature: 41-140F
Operating Speed Range: 2"-20"/s
Operating Life: Not less than 2485.485 miles
Buffer: Air Buffer (Standard)
Port Size: G1/8"
Stroke Size: 24"
Bore size: 1.25"
Material: Aluminum Alloy
Buffer Stroke: 20
Show More Technical Specifications
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Vincent .
Feb 25, 2020

Does this Pneumatic Air cylinder come with a double action control function?

Ravi g.
Apr 06, 2018

Will you provide single piece

Hello Ravi, thank you for your question. If you are asking if we would sell just 1pneumatic cylinder the answer is yes. There is no minimum order quantity when purchasing a pneumatic cylinder from Deelat Industrial. You can buy 1 or 100, however, the more cylinders you purchase the better pricing you will get.

Reply Deelat Industrial on Apr 06, 2018
Trevor I.
May 06, 2018

Hi it the barrel for this cylinder available to purchase seperate or does it only come as a complete cylinder.

Hello Trevor, thank you for your question. If you purchase this Pneumatic Cylinder you will receive exactly what you see in the photo. We do not sell include anything other than what you see photographed and on the product video.

Reply Deelat Industrial on May 07, 2018
Kiran S.
Feb 26, 2019

I am looking for just Pneumatic cylinder end caps. Can i get them without the whole pneumatic cylinder?

Hi Kiran, thank you for your question. Unfortunately we do not sell pneumatic cylinder end caps by themselves.

Reply Deelat Industrial on Mar 19, 2019
Tony B.
Nov 22, 2020

What is the diameter of the cylinder rod?

Hi, Tony. The diameter of the cylinder rod is M16x1.5.

Reply Deelat Industrial on Nov 30, 2020
