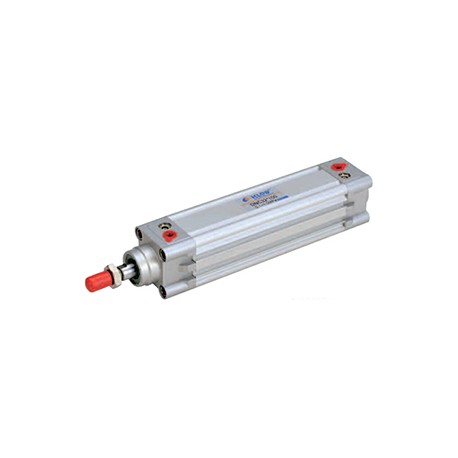

Pneumatic Air Cylinder – Double Acting – 1.25" Bore x 2" Stroke – Pull Rod Type – DNC
This standard double action DNC air piston is a pull rod type. The bore is 1.25" and the stroke is 2". Like all of Deelat’s types of cylinders, it is made from the highest professional-grade materials.
The pneumatic air cylinder uses compressed air acting on a piston inside a cylinder to move a load along a linear path. The double acting piston has two separate ports to extend and retract the piston.
These air piston products are types of cylinders utilized in a variety of industrial sectors, factory automation and packaging, as well as transportation and life science applications. It is especially useful in areas where non-contamination is a priority, since the pneumatic piston does not leak fluids.
|Size:||5.7" x 1.8" x 1.8"|
|Motion Pattern:||Double Action|
|Working Medium:||Filtered Air|
|Max Air Pressure:||8 kg/cm|
|Min Operating Pressure:||0.1 MPa|
|Max Operating Pressure:||1.0 MPa|
|Operating Speed Range:||2"-20"/s|
|Operating Life:||Not less than 2485.485 miles|
|Buffer:||Air Buffer (Standard)|
