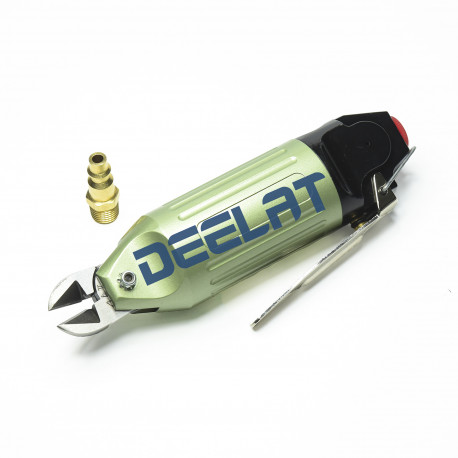

Pneumatic Air Cutter (2.0 mm, 2.6 mm)

SKU #D1158643
View All Pneumatic Air Cutters
OR
Select BLUE dropdown(s) below.
= the combination is not available.
Selecting GREY line also resets the options.
Certified
CE certified

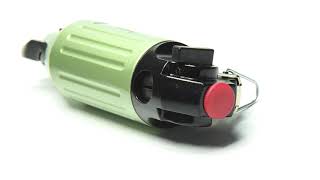

Product Video

Pneumatic Air Cutter (2.0 mm, 2.6 mm) #D1158643
Open For Business & Shipping Daily During Covid-19
Buy this product
Select filters above OR


View All Products

Price
$16370
Quantity


Payment Methods

Free shipping on
orders over $400

Payment Methods
Calculate Shipping

General Description

Pneumatic Air Cutter (2.0 mm, 2.6 mm)


The pneumatic shear has a cutting capacity on iron wire of 2.0 mm and on copper wire of 2.6 mm. It uses an S5 blade and has an air consumption of 112 cubic cm/min.

Function
The pneumatic air cutter is fed high speed air from the bottom of the unit, which powers the cutting head. When a material that needs cutting is positioned within the head, manually squeezing the handle on the nipper activates the shearing action of the blade. The nipper can also be used for crimping, bending, and grabbing according to specific needs.

Applications
The air powered pneumatic shear is ideal for environments where copper, iron, and other hard materials need to be cut quickly and in large quantities, such as in construction, automotive, industrial settings.

Technical Details

Certifications: CE
Length: 171 mm
Weight: 350 g
Handle Diameter: 46 mm
Air Inlet: 1/4 P.T
Air consumption: 112 1/min (4 cfm)
Air Pressure: 5~6 kg (0.5 ~ 0.6 MPa)
Pressure Power: 140 kg (1370 N)
Blade: S5
Cutting Capacity: Copper Wire 2.6 mm, Iron Wire 2.0 mm
Brand: Deelat Industrial
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Dave L.
May 21, 2019

Do you make carbide tooling for them?

Hi Dave, thanks for your question. We currently do not have carbide tooling for the Pneumatic Shear and Air Nipper, but please check back with us as we are constantly adding new products. If you have any other questions or concerns please do not hesitate to contact us.

Reply Deelat Industrial on May 23, 2019
Stewart L.
Jan 17, 2020

Do you have a cutter that will cut 4mm wires

This pneumatic air cutter is capable of cutting up to 3.3mm copper wire or 2.8mm iron wire, so it would depend on the material of the wire you are using. Please contact our customer service for more information so we can better advise you.

Reply Deelat Industrial on Jan 21, 2020
Andy M.
Apr 29, 2019

Can these be used for electronic applications? We are looking for a tool to cut small transformer leads on printed circuit boards. Leads are about 1.2mm/.05".

Hi Andy, thanks for your interest. We can only recommend using this pneumatic cutter to cut copper wire or plastic. If you would like to call our sales team at 1-888-667-5776, they can help you select the correct pneumatic cutter for electronic applications.

Reply Deelat Industrial on May 06, 2019
Russ S
Jun 26, 2018

What is the operating PSI for this air nipper?

Hello Russ, thank you for your question. The operating pressure is .4-.5 MPA this translates to about 58-73 PSI. If you have any other questions please do not hesitate to contact our customer support team.

Reply Deelat Industrial on Jun 27, 2018
George G.
Dec 14, 2020

What is the air inlet size?

Hi George, the air inlet size is 1/4 PT.

Reply Deelat Industrial on Dec 18, 2020
Dale R.
Jul 06, 2018

I would like to know if this will cut 28 gauge pole barn metal which has ribbing in it of course.

Hello Dale, thank you for your question. This pneumatic shear and air cutter has a max opening of 9mm which is about .36 inches. If the pole has a diameter greater than this it will not cut it.

Reply Deelat Industrial on Jul 09, 2018
Buddy E.
May 24, 2019

Looking for air nippers capable of cutting up to 10 awg galvanized wire for making crab traps. Any suggestions?

Hi Buddy, thanks for the question. Yes, this air nipper is capable of cutting 10 AWG wire, which has a diameter of 2.6 millimeters. These shears can cut copper wire with diameters of up to 3.3 mm and iron wire with diameters of up to 2.8 mm. If you need assistance with your purchase, please call our sales team at 1-888-667-5776 or email at sales@deelat.com!

Reply Deelat Industrial on Jun 04, 2019
Majed Z.
Mar 15, 2021

Can this cut tinned 8 AWG stranded wire?

Yes, the cutting capacity can be up to 4.0mm.

Reply Deelat Industrial on Apr 01, 2021
David W.
Feb 19, 2019

how long will they last cutting #6 zinc coated screws

Hello David, thanks for your question. This product can only be used to cut copper and plastic. We do not recommend using it to cut zinc coated screws. If you have any other questions or concerns please do not hesitate to contact us.

Reply Deelat Industrial on Mar 18, 2019
David M.
Jun 04, 2019

How much does this product weigh?

Hi David, thanks for your question. This air nipper weighs 0.25 kg or 9 ounces. If you need assistance with your purchase, please call our sales team at 1-888-667-5776 or email at sales@deelat.com!

Reply Deelat Industrial on Jun 05, 2019
anthony j.
Aug 14, 2019

Can this tool cut a 12 gauge lobster trap wire?

Hi Anthony, thanks for your question. A 12 gauge wire has a diameter of over 2 millimeters, therefore this tool wouldn't be adequate to cut your lobster trap wire. We recommend using a different pair of cutters, SKU #D1158643, for your application. If you need assistance with your purchase, please call our sales team at 1-888-667-5776 or email at sales@deelat.com!

Reply Deelat Industrial on Aug 22, 2019
Frank K.
Sep 20, 2017

Will this unit cut 0.7mm sheet metal that is 1&1/4" wide?

Hello Frank, thank you for your question. Yes this cutter will certainly cut 0.7mm sheet metal. You should have absolutely no issues using this cutter and should perform as intended.

Reply Deelat Industrial on Sep 22, 2017
Anyurith H.
Apr 16, 2019

What brand is this product? where was it made?

Thanks for your interest in our pneumatic products, Anyurith. The brand is Deelat Industrial and it was made in China. If you have any other questions or concerns please do not hesitate to contact us.

Reply Deelat Industrial on Apr 17, 2019
William L.
Mar 19, 2020

I work at a scrap yard and one of my duties is to process cars. Would one of these tools work for cutting the straps off the gas tanks?

No, our pneumatic air cutters would not work for this purpose.

Reply Deelat Industrial on Mar 23, 2020
Pete s.
Dec 20, 2017

Can this tool be used to cut tack wells on a core support

Hello Pete, thank you for your question. Unfortunately this pneumatic cutter will not be suitable to cut tack wells. We currently do not have any cutter that will work for your application. Please cvheck back with us in a month or so as we are constantly adding products to our inventory.

Reply Deelat Industrial on Dec 21, 2017
Anyurith H.
Apr 16, 2019

Would it cut 8 AWG tinned copper wire?

Hi Anyurith, thanks for your question. This cutter can cut through copper wire that is 3.3 millimeters in diameter, which is roughly the same size as 8 AWG tinned copper wire. If you have any other questions or concerns please do not hesitate to contact us.

Reply Deelat Industrial on Apr 19, 2019
William S.
Feb 15, 2018

What gauge mild steel will this cut?

Hello William, thank you for your question. This Pneumatic Shear and Air Cutter has the ability to cut stainless steel up to 1mm thick. So any mild steel below 1mm should be suitable for this air nipper.

Reply Deelat Industrial on Feb 26, 2018
