Air Pull Rivet-Nut Head

- 5/16" - Screw On - Suitable for D1171691, D1151470, D1151472, D1151471, D1774136, D1774137
SKU #D1775391
View All Nut Heads
OR
Select BLUE dropdown(s) below.
= the combination is not available.
Selecting GREY line also resets the options.

Product Video

Air Pull Rivet-Nut Head - 1/4
Open For Business & Shipping Daily During Covid-19
Buy this product
Select filters above OR


View All Products

Price
$5700
Quantity


Payment Methods

Free shipping on
orders over $400

Payment Methods
Calculate Shipping

General Description

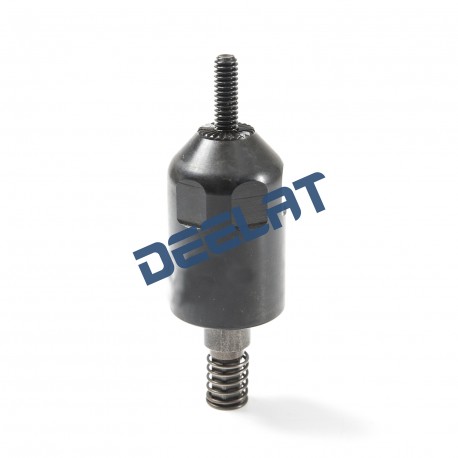

Air Pull Rivet-Nut Head - 5/16" - Screw On


The air pull rivet nut head has a size of 5/16" and is intended as a screw on head, used with an air rivet nut pull setter. Specifically, it is compatible with D1171691, D1151470, D1151472, D1151471, D1774136 and D1774137.

Function
The head screws on to air rivet nut pull setters that accept metric screw-on heads. A rivet nut of the correct thread size spins onto the head, and the tip of the setter is inserted into a predrilled hole. When activated, the pneumatic tool collapses the rivet nut, forming a secure bond with the surrounding material, and spins out of the rivet nut.

Applications
These machine screws are used with an air rivet nut pull setter, which is a pneumatic tool, to create threaded holes of a specific size. This is ideal for any context in which rivet nuts are needed, such as construction, metal fabrication, the automotive and aeronautics industries, and electronics.

Technical Details

Size: 5/16"
Compatible With: D1171691, D1151470, D1151472, D1151471, D1774136, D1774137
Brand: Deelat Industrial
Warranty: 180 Day
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Bill G.
Aug 06, 2019

Is this 5/16 18?

Hi Bill, thanks for your question. Yes, this is a 5/16-18 head. If you need assistance with your purchase, please call our sales team at 1-888-667-5776 or email at sales@deelat.com!

Reply Deelat Industrial on Aug 22, 2019
