Single Stage Vacuum Pump
- 3/4HP - 1720RPM - 270L/min
SKU #D1161206

View All Vacuum Pumps
OR
Select BLUE dropdown(s) below.

= the combination is not available.
Selecting GREY line also resets the options.
Certified

Open For Business & Shipping Daily During COVID-19
General Description

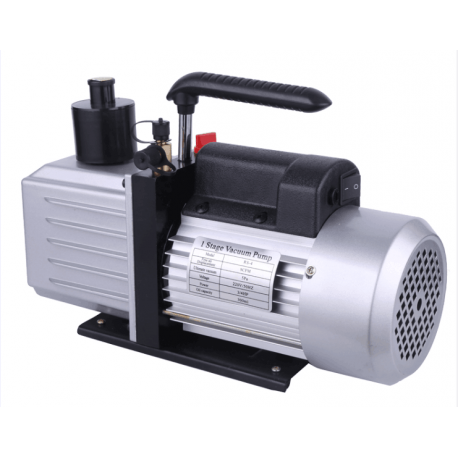

Single Stage Vacuum Pump - 3/4HP - 1720RPM - 270L/min
Deelat vacuum pumps have a powerful motor and high oil capacity, and are CE certified. The vacuum pump is single stage, 3/4HP, 1720rpm, and pumps 270L/min.
Function
Deelat’s vacuum pump manufacturers have designed this pump with the vacuum pressure to pull fluid out of a container. The single stage vacuum pump uses one dual suction impeller that provides volume to all discharges on the vehicle.
Applications
This vacuum pump is suitable for water circulation systems in most commercial and industrial jobs, and can be used in air conditioning. It will ensure optimal performance from your hydronic, solar and chilled water circulation systems.
Technical Details
Certifications: | CE |
---|---|
Single Stage | |
Voltage: | 110V 60Hz |
CFM Capacity: | 9 CFM |
Flow Rate: | 270 L/min |
Ultimate Vacuum(mircons): | 37.5 |
Motor Power: | 3/4 HP |
Speed: | 1720 rpm |
Inlet port: | 1/4" SAE |
Oil Capacity: | 300 mL |
Dimension(cm): | 36 x 13.5 x 27 cm |
Weight(Kg): | 13 |
Brand: | Deelat Industrial |

Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question!
Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.
Can this pump work for 20 continuous minutes without turning it off (minimum)?
Thank you for your interest in our rotary vane vacuum pump. Yes, this pump can work for at least 20 minutes without turning off. If you need assistance with your purchase, please call our sales team at 1-888-667-5776 or email at sales@deelat.com!
