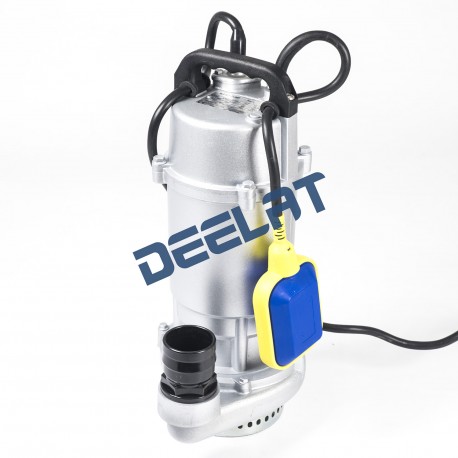

Submersible Electric Sump Pump
- Max Head 65 FT - Max Flow 55 GPM - Single Phase - 1 HP - 110V

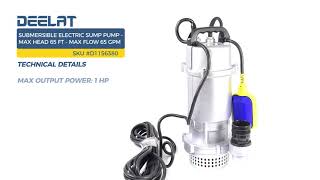

Product Video
Feature Video
How-to Video
General Description
Submersible Electric Sump Pump - Max Head 65 FT - Max Flow 55 GPM - Single Phase - 1 HP - 110V
The submersible electric sump pump has a single-phase motor, a 2 inch outlet, and 55 GPM capacity at a max head (delivery height) of 65 FT.
Function
The submersible pump, when fully submerged in water (like in the case of a flooded basement) pulls water into the intake where the impeller propels it through a diffuser and pumps the water to the surface. Free-moving float switch can be set to a pre-set depth, so that the pump turns on when water levels rise above the pre-set level, which protects your home from flooding. The pump turns off automatically when water levels in the basement systems or other areas are below the pre-set level.
Applications
The submersible pump can be used for flood protection in basement systems, wells, aquariums, sump basins, fountains, irrigation systems, sewage treatment, or anywhere where you need to keep water levels from rising.
Technical Details
| Certifications: | CE |
|---|---|
| Max Output Power: | 1 HP |
| Outlet Size: | 2 Inch |
| Max Flow: | 55 GPM |
| Max Head (delivery height): | 65 FT |
| Head Height @ 55 GPM: | 0 FT |
| Head Height @ 48 GPM: | 29 FT |
| Head Height @ 44 GPM: | 42 FT |
| Head Height @ 40 GPM: | 47 FT |
| Head Height @ 33 GPM: | 50 FT |
| Head Height @ 26 GPM: | 59 FT |
| Head Height @ 18 GPM: | 60 FT |
| Head Height @ 13 GPM: | 62 FT |
| Head Height @ 7 GPM: | 63 FT |
| Head Height @ 0 GPM: | 65 FT |
| Model: | Single Phase |
Do you have a question about this product?
Submersible Electric Sump Pump - Max Head 65 FT - Max Flow 55 GPM - Single Phase - 1 HP - 110V The submersible electric sump pump has a single-phase motor, a 2 inch outlet, and 55 GPM capacity at a max head (delivery height) of 65 FT. Function...
Submersible Electric Sump Pump - Max Head 110 FT - Max Flow 35 GPM - Single Phase - 1 HP - 110V The submersible electric sump pump has a single-phase motor, a 1 inch outlet, and 35 GPM capacity at a max head (delivery height) of 110FT....
PVC Flexible Duct – 12” (Diameter) * 25ft (Length) The 12” in diameter PVC duct has a length of 25 feet and is made out of a PVC material. It is able to endure temperatures between -4°F and +176°F. It is built with a steel wire helix frame....
Submersible Electric Sump Pump - Max Head 98 FT - Max Flow 46 GPM - Single Phase - 1.5 HP - 220V The submersible electric sump pump has a single-phase motor, a 2 inch outlet, and 46 GPM capacity at a max head (delivery height) of 98 FT....
Concentric Reducer – Tri-Clamp – 3A – 3” – 2” The tri-clamp concentric reducer pipe is a 3A standard 3” – 2” pipe. It is constructed out of stainless steel and features a clamp connection. The wall thickness is .065”. Function The concentric...
Submersible Electric Sump Pump - Max Head 32 FT - Max Flow 220 GPM - Single Phase - 1.5 HP - 110V The submersible electric sump pump has a single-phase motor, a 3 inch outlet, and 220 GPM capacity at a max head (delivery height) of 32 FT....
Submersible Electric Sump Pump - Max Head 59 FT - Max Flow 22 GPM - Single Phase - 0.5 HP - 110V The submersible electric sump pump has a single-phase motor, a 1 inch outlet, and 22 GPM capacity at a max head (delivery height) of 59 FT....
What is the maximum width of this pump including discharge port. My sump pit is only 8" in diameter - It is an inground swimming pool sump
Hello Sue, thank you for your question. The sump pump has a total diameter of 10" including the discharge. Unfortunately it will not fit in your sump pit. We currently do not offer a sump pump that will fit in that small diameter.
Do these pumps come with the control box?
Thanks for your interest in our products, Scott. Unfortunately, this product is no longer available. However, we have several submersible electric pumps for a variety of applications. If you have a specific application that requires a pump with a control box, call our sales team at 1-888-667-5776 or email at sales@deelat.com for assistance in selecting the right Deelat product.
Hi I will like to get the dimensions of this pump
Hello LC, thank you for your question. The dimensions for our submersible sump pump is as follows: Length: 38 cm , Height: 23 cm, Width: 22 cm, Weight 12.5 Kg. If you have any other questions or concerns please do not hesitate to contact us.
what is the diameter of this product? I have a narrow application.
Hello Dave, thank you for your question. Our submersible sump pump is roughly 9" in diameter. The 9" include the outlet of the sump pump. We carry a number of different pumps with different dimensions. if this submersible pump is too wide please contact our customer support staff to discuss your application so we can better direct you to a submersible sump pumop that would work for your application.
Need to know height measurement before ordering cheers
Hello Barry, thank you for your question. This Submersible Electric Sump Pump has a height of approximately 18 inches. If this height is not suitable for your application please contact our customer support team as we have many other Submersible Electric Sump Pump options that could work for you.
How many Amps does this draw?
Hello John, thank you for your question. Our submersible sump pump D1156390 draws approximately 5.08 amps.
Is the impeller made of , plastic , galvanized steel , or stainless?....Rod
Hello Rod, thank you for your question. The impellers on this submersible sump pump are made of out stainless steel. The pump itself is made of a combination of stainless steel and plastic components that are designed to last and be anticorrosive.
Hi, can you tell me what the minimum diameter a circular holding basin can be allow proper functionion? circular basi
Hello Roger, thank you for your question. The minimum diameter for a basin would be roughly 28 cm.
What is the amp rating of this pump?
Hi Eric, thanks for your question. This sump pump is a single phase 220V/380V, 60Hz model. If you need assistance with your purchase, please call our sales team at 1-888-667-5776 or email at sales@deelat.com!
CAN THIS PUMP BE ADAPTED TO 3 INCH DISCHARGE LINE AT 6 FT. HEAD
Hello Carlos, thank you for your question. Unfortunately the answer is no. Our submersible pump cannot be adapted in anyway and is set at a 2 inch discharge.
will this pump water out of a car wash trench? There will be road grime in it, pebbles, sand, dirt etc
Hello Darren, thank you for your question. Unfortunately this sump pump will not work for your application. The sump pump can handle sand and dirt but will not be able to withstand the pebbles or other road debris.
Can this pump be used without the float? We need a portable pump to be powered by a portable generator to move between underground stormwater tanks for irrigation use.
Thanks for your interest in our products, Jeff. Unfortunately, this product is no longer available. However, we have a several other submersible electric sump pumps to choose from. Call our sales team at 1-888-667-5776 or email at sales@deelat.com for assistance in selecting the right Deelat product.
what is the best pump i can have with 60 GPM out with 100FT deep
Hello Pierre, thank you for your question. This submersible sump pump is actually the best pump to meet your requirements. We would recommend D1156413, it is the only pump that has over 100 ft of max head and the closest to get to 60 GPM that you require.
Will this pump work with salt water?
Thanks for your interest in our products, Nancy. Unfortunately, this pump is no longer available. However, we have a several other pumps to choose from. Call our sales team at 1-888-667-5776 or email at sales@deelat.com for assistance in selecting the right Deelat product.
Can you show the pump curve, head vs. gpm on this pump
Hello Darren, thank you for your question. We can certainly provide you with the line graphs showing the parameters you are requesting but cannot add them to the Q &A section. Please email us and we can certainly send you all specs including performance graphs. If you have any other questions feel free to give us a call.
I need to pump sea water 6000m in 50mm poly line. Max lift of 8m. Can I use a submersible electric pump?
Hi Tony, thanks for your question. We do not recommend using a submersible electric pump for sea water. Doing so will increase the chances of the pump's parts becoming rusty.
The dimensions for our submersible sump pump is as follows: Length: 38 cm , Height: 23 cm, Width: 22 cm, Weight 12.5 Kg. We used this pum for a water fountain. It had to lift a 500lb ball and then rotate it. It was the only one that worked. We must have tryed 10 different one.
If you use this submersible electric sump pump as a fountain pump, we would need to know the height of your fountain to be able to help. In general, when using the fountain pump, you will need to be equipped with a nozzle in order to reach a certain height.
What is the rated AMPERAGE for this model?
Hello Arthur, thank you for your question. The amp rating for this pump is 5.7A. If you have any other technical questions regarding this pump please contact our customer support team for assistance.
Can I put a riser under this
Hello Robert, thank you for your question. We have confirmed with our submersible pump manufacturer that the submersible pump cannot be put on risers.
What is the max gpm for the D1156380 with a head height of 10', do you have a flow chart that shows the max gpm for differant head heights?
Hi Calvin, thanks for your question. First, we are very sorry that it took so long to get to your question. In that time, this product ceased production and is unfortunately no longer available. A similar product, SKU #D1156394, has a data sheet with a flow chart that provides the information you were looking for with this product. If you have any other questions or concerns please do not hesitate to contact us.
I have a continuous flow of water entering my sump due to high lake water level in front of my apartment building. I have a standard pump in the sump right now, but need advice on possibly having 2 good continuous pumps installed with different float heights to ensure we are keeping the water at a managing level in case the lake water level rises more. Please advise what pump is suitable for my situation.
All our submersible electric sump pumps are suitable to run continuously. Since your case has too many unknown factors, please contact us for assistance to discuss this further.
HELLO: What are the dimensions of this pump including maximum width overall at the discharge elbow level?
Hello Al, thank you for your question. The dimensions for our Deelat Submersible Sump Pump are 17 3/4" x 11" x 8". This includes the elbow as you mentioned. If you have any other questions or concerns please do not hesitate to contact us
Hi,i need to know how round is this pump? I want to put it into a hole, what is the diameter?
Hello Lois, thank you for your question. The diameter of our electric submersible sump pump is roughly 8.7 inches. We have many different submersible pumps available and in all different sizes. If this pump does not work for you please make sure to give our support team a call to go over your many options.
I would like to get a D1156382 and connect it to 1.25" threaded pipe. Is this an option if the 1" plastic hose barb fitting is removed, or must this fitting be used?
Hi Ken, thank you for your question. It is generally recommended that you keep the barb fitting in place and to fit it tightly to a flexible hose for most applications. If you need assistance with your purchase, please call our sales team at 1-888-667-5776 or email at sales@deelat.com!
What is the weight of this sump pump?
Is this pump made in the USA?
Hello Thomas, thank you for your question. Our submersible sump pump is made in China.
Who is the closet supplier to Baxley Ga 31513?
Hi David, thanks for your interest in our pumps. We can supply products anywhere in the US. If you need assistance with your purchase, please call our sales team at 1-888-667-5776 or email at sales@deelat.com!
