Threaded Flange

- Nominal Pipe Size 10" - Class 150 - Raised Face - Stainless Steel - F316/316L
SKU #D1149899
View All Threaded Flanges
OR
Select BLUE dropdown(s) below.
= the combination is not available.
Selecting GREY line also resets the options.

Product Video

Open For Business & Shipping Daily During COVID-19
Buy this product
Select filters above OR


View All Products

Price
$1,24270
Quantity


Payment Methods

Free shipping on
orders over $400

Payment Methods
Calculate Shipping

General Description

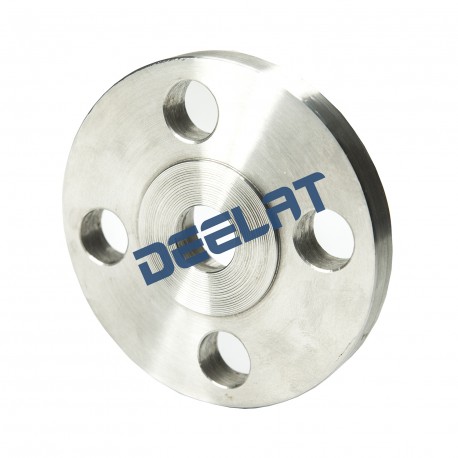

Threaded Flange – Nominal Pipe Size 10” – Class 150 - Raised Face – Stainless Steel – F316/316L


The screw-on flange's nominal pipe size is 10” with a total diameter of 16”. It has a pressure class rating of 150 and has 12 bolt holes. It is made of AMSE B 16.5 (steel) and comes in a thickness of 1.9425”.

Function
The threaded flange is very similar in function to the slip-on flange however it allows for a pipe to be screwed in without the need for welding and therefore has a bore that is larger than the outer diameter of the pipe. The threaded flange is used in low pressure systems that are run in normal temperatures.

Applications
The screw-on flange is used in pipeline applications where liquid or gas is transported from one location to another. The pipe used must be of a certain thickness to be used with this flange. Best used in applications where welding is dangerous.
Download PDF
Download Spec sheet
SKU #D1149899
Download PDF

Technical Details

Type: NPT Threaded
Nominal Pipe Size: 10"
Class: 150
Weight: 43 lb
Number of Bolts: 12
Overall Diameter: 16 inch
Overall Thickness: 1.9425 inch
Bolt Hole Diameter: 1 inch
Bolt Circle Diameter: 14.25 inch
Standard: AMSE B16.5
Brand: Deelat Industrial
