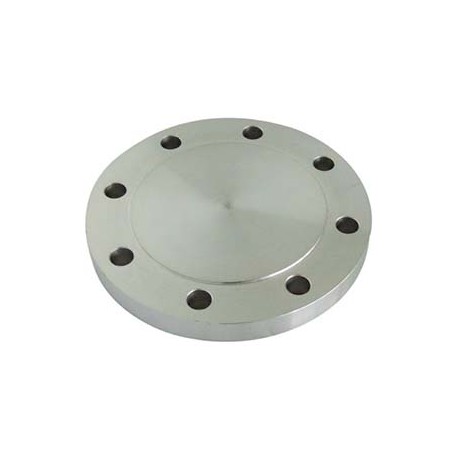

Blind Flange - Nominal Pipe Size 36" - Class 600
This solid flange's nominal pipe size is 36” in size with a total diameter of 51.75”. It has a pressure class rating of 600 and has 28 bolt holes. It is made of AMSE B 16.47 A (steel) and comes in a thickness of 6.38”.
The blind flange is a flange without a bore and is used to seal off pipe ends. The flanges can be used in systems that are operational or in expansion systems that are not yet operational. They allow easy access to the line and can be sealed and re-opened.
This solid flange is used in pipeline applications where liquid or gas is transported from one location to another.
Download Spec sheetSKU #D1146423
|Size:||Nominal Pipe Size 36"|
|Number of Bolt Holes:||28|
|Bolt Hole Diameter:||2.62"|
|Bolt Circle Diameter:||47"|
|Standard:||AMSE B 16.47 A|
