Blind Flange

- Nominal Pipe Size 3" - Class 900
SKU #D1146484
View All Blind Flanges
OR
Select BLUE dropdown(s) below.
= the combination is not available.
Selecting GREY line also resets the options.

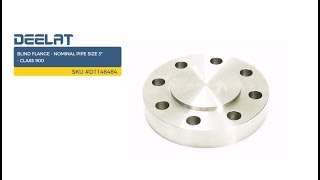

Product Video

Blind Flange - Nominal Pipe Size 3
Open For Business & Shipping Daily During COVID-19
Buy this product
Select filters above OR


View All Products

Price
$17600
Quantity


Payment Methods

Payment Methods

General Description

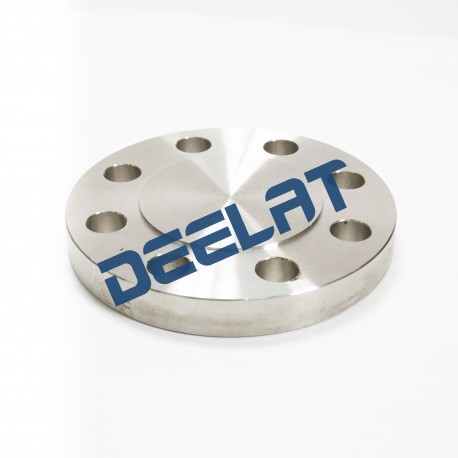

Blind Flange - Nominal Pipe Size 3" - Class 900


This solid flange's nominal pipe size is 3” with a total diameter of 9.5”. It has a pressure class rating of 900 and has 8 bolt holes. It is made of AMSE B 16.5 (steel) and comes in a thickness of 1.5”.

Function
The blind flange is a flange without a bore and is used to seal off pipe ends. The flanges can be used in systems that are operational or in expansion systems that are not yet operational. They allow easy access to the line and can be sealed and re-opened.

Applications
This solid flange is used in pipeline applications where liquid or gas is transported from one location to another.
Download PDF
Download Spec sheet
SKU #D1146484
Download PDF

Technical Details

Type: Blind
Class: 900 lb
Size: Nominal Pipe Size 3"
Flange Diameter: 9.5"
Number of Bolt Holes: 8
Bolt Hole Diameter: 1"
Bolt Circle Diameter: 7.5"
Flange Thickness: 1.5"
Standard: AMSE B 16.5
Weight: 15.1 kg
Brand: Deelat Industrial
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Charles M.
Aug 11, 2017

Would MTR's be supplied with this item?

Hello Charles, thank you for your question. MTR's will not be supplied with the flange. All you will receive if you purchase SKU# D1146404 is the blind flange. If you have any other questions or concerns please do not hesitate to contact us.

Reply Deelat Industrial on Sep 19, 2017
Darwin G.
May 22, 2019

Can I purchase a gasket along with this item?

Thanks for your interest in our products, Darwin. Unfortunately, this product is no longer available. However, we have a few other blind flanges to choose from. If you have a specific application that requires a blind flange with a gasket, call our sales team at 1-888-667-5776 or email at sales@deelat.com for assistance in selecting the right Deelat product.

Reply Deelat Industrial on May 23, 2019
