Cross Pipe – 3A – 1-1/4”

SKU #D1140592
Whoa...
View All Sanitary Fittings
Select options with the BLUE "Please Select" dropdown(s) on the RIGHT.
GREY line = the item is not available.
Selecting a GREY line also resets the options for the category.
Open For Business & Shipping Daily During COVID-19
Buy this product
Select filters above OR


View All Products

Price
$2580
Quantity


Payment Methods

Payment Methods

General Description

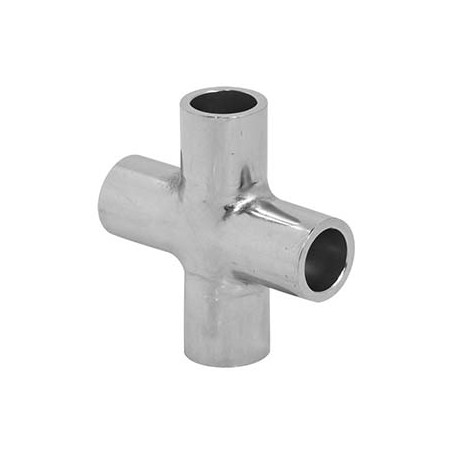

Cross Pipe – 3A – 1-1/4”


The cross pipe is a 3A standard 1-1/4” pipe. It is constructed out of stainless steel and features a weld connection. The wall thickness is .065”.

Function
The cross pipe is used as one part of a larger sanitary valve system in conjunction with other fittings. Constructed in the form of a cross, connections are made to other elements of the sanitary system to shape the line as needed. The pipe is designed to minimize the buildup of bacteria in the line and is resistant to corrosion.

Applications
The cross pipe, like its sanitary valve counterparts, is used in a number of industrial environments, including food and beverage, cosmetics, biotechnology, and pharmaceuticals.

Technical Details

Material: 316L Stainless Steel
Connection Type: Weld
Standard: 3A
Wall Thickness: 0.065
Style: Cross
Size: 1-1/4"
Brand: Deelat Industrial
Warranty: 180 Day
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Cuong L.
May 22, 2018

1.5" hose barb, what is diameter of tri clamp end?

Hello Cuong, thank you for your question. The diameter of the tri-clamp end is also 1.5". You will have to use a 1.5" clamp to attach it to another tri-clamp fitting. Always make sure to use a gasket when attaching tri-clamp fittings.

Reply Deelat Industrial on May 23, 2018
Daniell J.
Oct 08, 2019

What is the length of this item?

The length of this tri-clamp concentric reducer pipe is 127mm.

Reply Deelat Industrial on Oct 10, 2019
