Paper Perforator
- Manual
Product Video
Feature Video
General Description

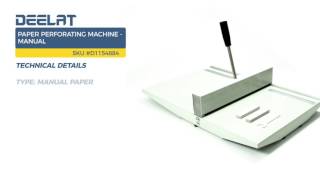

Paper Perforator - Manual
The perforating machine is a manual machine with a perforating length of 14 3/16" inches and a maximum paper weight of 1 lb. The dimensions of the unit are 23 5/8" * 15 1/16" * 5 1/8" (inches)
Function
The perforating machine uses a built-in scoring blade to create perforations. Paper slides under the central bar and, once it is aligned in the desired manner, the user manually presses the handle which forms the perforations in the paper. The unit also features side alignments to ensure the perforations are even.
Applications
The machine is ideal for home and commercial workstations for efficiently producing cards, tickets, coupons, forms, bills and other paper materials.
Technical Details
| Type: | Manual Paper Perforator |
|---|---|
| Creasing length: | 14 3/16" (inches) |
| Max paper weight: | 1 lb |
| N.W.: | 11.5 lbs |
| Dimensions: | 23 5/8" * 15 1/16" * 5 1/8" (inches) |
| Brand: | Deelat Industrial |
| Warranty: | 1 Year |
Do you have a question about this product?
Paper Perforator - Manual The perforating machine is a manual machine with a perforating length of 14 3/16" inches and a maximum paper weight of 1 lb. The dimensions of the unit are 23 5/8" * 15 1/16" * 5 1/8" (inches) Function The...
Paper Creaser – Manual The paper creaser is a manual machine with a creasing length of 14.2" and a max paper weight of 15.9 oz. The dimensions of the unit are 23.6 x 15.1 x 5.1". Function The stack paper cutter uses a built-in knife to create...
PVC Flexible Duct – 28" (Diameter) * 25ft (Length) The 28” in diameter PVC duct has a length of 25 feet and is made out of a PVC material. It is able to endure temperatures between -4°F and +176°F. It is built with a steel wire helix frame....
Paper Creaser – Manual The paper creaser is a manual machine with a creasing length of 18.1" and a max paper weight of 1 lb. The dimensions of the unit are 23.6 x 19.5 x 4.9". Function The stack paper cutter uses a built-in knife to create...
Motorized Electric Ball Valve - 3-Way DC - 3/4", 2.5N.m, Stainless Steel, 24V - ON/OFF The motorized electric ball valve consists of a 3-Way 3/4” stainless steel valve, has a 2.5N.m operating torque and the actuator requires DC24V power. It also...
How many perforations per inch does this machine make? Can you adjust the perforation pattern?
Hello Steve, thank you for question. Unfortunately the perforating pattern can not be adjusted at all, it is fixed.
How may sheets of 20 lb bond can be perforated at one time ( model D1154884)?
Hello Philip, thank you for your question. Our manual paper perforating machine (D1154884) will only be able to do 1 lb at time. The max paper weight it can handle is 1 lb and that is approximately 25 sheets at a time.
What style of perf is this? (ie slot or pinhole), size of perf and how many per inch?
Hello and thank you for your question. The perforating style is slot, the size of the perforation is 1/8" (3 mm) and it makes 2 slots per inch (25.4mm). If you have any other questions or concerns please do not hesitate to contact us.
If I were to perforate card stock, how many sheets could D1154884 handle?
D1154884 can perforate only one sheet at a time, as that is how perforators create their dotted lines for tearing. The maximum density of paper this machine can handle is 450g.
