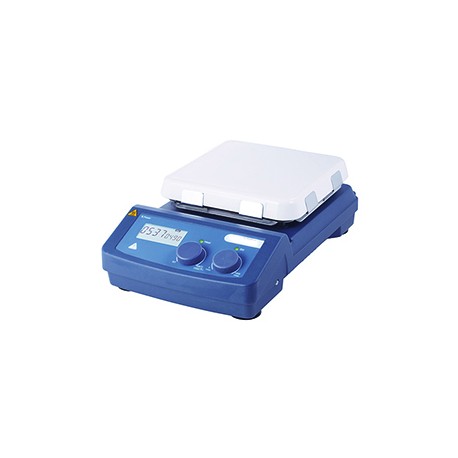

Lab Hotplate - Magnetic - LCD Digital - Square - 7" x 7"

SKU #D1162532
View All Lab Hotplates
OR
Select BLUE dropdown(s) on the right.
= the combination is not available.
Selecting GREY line also resets the options.
Certified
UL certified
Open For Business & Shipping Daily During COVID-19
Buy this product
Select filters above OR


View All Products

Price
$1,04010
Quantity


Payment Methods

Payment Methods

General Description

Lab Hotplate - Magnetic - LCD Digital - Square - 7" x 7"


This lab hotplate is magnetic and has LCD digital display. It is a square shape measuring 7" x 7", is 110V in voltage and uses 50/60Hz plugs.

Function
The heating plate turns on and displays its current temperature with the LCD digital screen. It can control and adjust the temperature according to selection.

Applications
This lab hot plate is the ideal equipment for professional and educational lab applications. It is especially useful in medical labs where materials need to be heated, and can be used in conjunction with a magnetic stirrer.

Technical Details

Certifications: UL, CSA, TUV, CE
Hotplate/Stirrer: MS7-H550-Pro
Temp range: Ambient - 550°C
Speed range: 100-1500rpm
Temp accuracy at plate: ±1(100°C)
Temp control accuracy of liquid using PT- 1000 Sensor: ±0.2°C
Temp increments: 1°C
Heat output: 1000W
Max. Stirring Qty.: 20 Liters
Heating rate (1 liter water): 6K/min
Speed/Heat display: LCD (backlit)
Motor type: DC Brushless
Plate size: 7 x 7"
Plate material: Ceramic-Glass
Dimensions: 14"L x 8.5"W x 4.5"H
Weight: 11lbs
Show More Technical Specifications
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Brendan w.
Jul 05, 2018

Hello, can this plate remain stationary while it is heating, or does it rotate automatically when the heating is on?T

Yes, this plate can remain stationary while it is heating.

Reply Carlton L. on Jul 06, 2018
Zhixiao X.
Oct 26, 2018

Do you have a temperature probe equipped with this hotplate?

Hello Zhixiao, thank you for your question. Yes this hotplate does come quipped with a temperature probe. If you have any other questions or concerns please do not hesitate to contact us at your earliest convenience.

Reply Deelat Industrial on Oct 29, 2018
Zhixiao X.
Oct 26, 2018

Can this device control the temperature? Also can we control every single stirrer individually?

Hello Zhixiao, thank you for your question. No this stirrer cannot control temperature. You cannot control each individual stirrer. The stirrer has 4 separate columns and you are able to control each column separately. Each column has its on control knob to adjust speed.

Reply Deelat Industrial on Oct 29, 2018
