Double Swivel Hoist Ring

- M12
SKU #D1142674
View All Double Swivel Hoist Rings
OR
Select BLUE dropdown(s) below.
= the combination is not available.
Selecting GREY line also resets the options.
Open For Business & Shipping Daily During COVID-19
Buy this product
Select filters above OR


View All Products

Price
$20550
Quantity


Payment Methods

Free shipping on
orders over $400

Payment Methods
Calculate Shipping

General Description

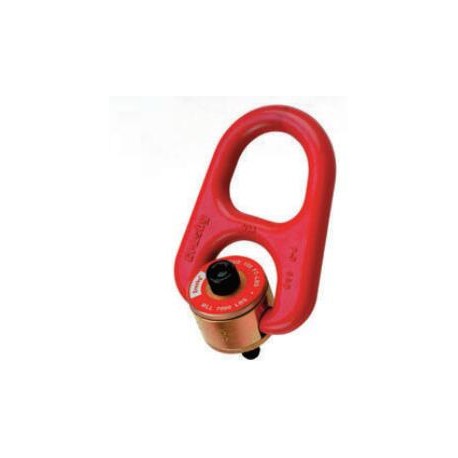

Double Swivel Hoist Ring – M12


The double swivel hoist ring has an M12 bolt size and offers multiple lifting points.

Function
The lifting ring is a threaded bolt which inserts into a load. The eye of the bolt protrudes from the object, allowing a crane or other lifting mechanism to use the eyehole as a lifting point. The ring swivels 360° to maintain load alignment whether you are doing a side pull or vertical pull.

Applications
The stainless steel lifting ring is ideal for industrial, construction, and commercial applications where large loads or materials need to be moved from one area to another.

Technical Details

Frame Size: 2
Weight: 3.3 lbs
Working Load Limit: 2866 lbs
(Bolt Size) A: M12 x 1.75 x 55
Effective Thread Projection Length B: 15.2
C: 162
D: 49.8
E: 31.8
F: 19.1
G: 107
H: 63.5
Torque (Nm): 38
Brand: Deelat Industrial
