Explosion Proof Fan
- Ventilation Diameter 12" - Single Phase 110V - 3400 RPM

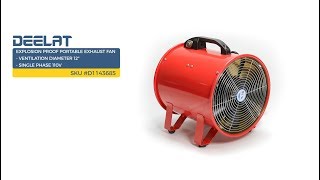

Product Video
Feature Video
General Description

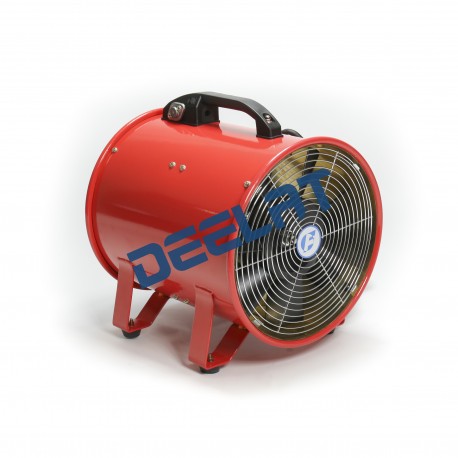

Explosion Proof Fan - Ventilation Diameter 12" - Single Phase 110V - 3400 RPM
The explosion proof fan has a diameter of 12”, the voltage is 110V, and it is single phase. It has an air volume of 2470 cubic feet/minute, and its max RPM rating is 3400 RPMs.
Function
The paint booth exhaust fan is used along with ducts to circulate fresh air or remove unwanted air, and it may also be used to maintain a suitable working temperature. Ducts connect to the ventilator through a strap system. It can be used apart from ducts for the same purposes. The ventilator has an explosion-proof motor and switch, cast aluminum blade, and a flame-proof inner barrel. The pure copper inner barrel also has spark resistance, ensuring safety of operation.
Applications
The hazardous location fans can safely be used in gas stations, chemical industries, metallurgy plants, and for any flammable or explosive environment, due to its explosion proof and spark resistant construction. When used with anti-static ducting, the paint booth exhaust fan is ideal for cleaning air-tight tanks.
Technical Details
| Certifications: | CE |
|---|---|
| Type: | Portable |
| Diameter: | 12" |
| Voltage: | 110 V |
| Phase: | Single |
| Frequency: | 60 Hz |
| Wattage: | 520 W |
| Explosion Proof: | Yes |
| Max RPM: | 3400 RPM |
| Air Pressure: | 343pa |
| IP Rating: | IP54 |
| Noise: | 92 dBA |
| Brand: | Deelat Industrial |
Do you have a question about this product?
Explosion Proof Fan - Ventilation Diameter 8" - Single Phase 110V - 3400 RPM The explosion proof fan has a ventilation diameter of 8”, the voltage is 110V, and it is single phase. It has an air volume of 1060 cubic feet/minute, and its max RPM...
PVC Flexible Duct – 12” (Diameter) * 25ft (Length) The 12” in diameter PVC duct has a length of 25 feet and is made out of a PVC material. It is able to endure temperatures between -4°F and +176°F. It is built with a steel wire helix frame....
HVAC Duct - 18" (Diameter) * 32 ft (Length) The 18” in diameter HVAC duct has a length of 32 feet and is made out of a PVC material. It is able to endure temperatures between -4°F and +176°F. It is built with a steel wire helix frame. Function...
Portable Ventilation Fan - Diameter 7 7/8" - Single Phase - 220V The vent fan has a diameter of 7 7/8" and the voltage is 220V. It has an air volume of 880 cubic feet/min, and its max RPM rating is 2800 RPMs. Function The portable ventilation...
Explosion Proof Fan - Ventilation Diameter 12" - Single Phase 220V - 2800 RPM The explosion proof fan has a ventilation diameter of 12”, the voltage is 220V, and it is single phase. It has an air volume of 2119 cubic feet/minute, and its max RPM...
Explosion Proof Fan - Ventilation Diameter 12" - Single Phase 110V - 3400 RPM The explosion proof fan has a diameter of 12”, the voltage is 110V, and it is single phase. It has an air volume of 2470 cubic feet/minute, and its max RPM rating is...
Explosion Proof Fan - Ventilation Diameter 11" - Single Phase 220V - 3600 RPM The explosion proof fan has a diameter of 11.1”, the voltage is 220V, and it is single phase. It has an air volume of 2720 cubic feet/min and its max RPM rating is...
PVC Flexible Duct – 12" (Diameter) * 15ft (Length) The 12” in diameter PVC duct has a length of 15 feet and is made out of a PVC material. It is able to endure temperatures between -4°F and +176°F. It is built with a steel wire helix frame....
Flameproof Duct - Ventilation Diameter 13" - Length 16 ft The flameproof duct has a ventilation diameter of 13”, a length of 16 feet, and is made out of a PVC material. This flameproof equipment is able to endure temperatures between -4°F and...
Explosion Proof Fan - Ventilation Diameter 8" - Single Phase 220V - 2800 RPM The explosion proof portable exhaust fan has a ventilation diameter of 8”, the voltage is 220V, and it is single phase. It has an air volume of 1060 cubic feet/minute,...
Flameproof Duct - Ventilation Diameter 11" - Length 16 ft The flameproof duct has a ventilation diameter of 11”, a length of 16 feet, and is made out of a PVC material. This flameproof equipment is able to endure temperatures between -4°F and...
My room measurements are 14x7x8 what size of exaust fan do I need?
We recommend using any of our Explosion Proof Fans with diameters or 8 or 12 inches. Either of our 8" fans (D1143684 or D1143682) would do a good job of circulating air through 784 cubic feet of space.
Can this be used to vent out fumes for a spray paint booth?
DEELAT fans can be used to vent out fumes for a spray paint booth.
Can I use this around Welding Fumes, Sparks, Etc?
DEELAT's explosion proof ventilators are designed to be operated in hazardous conditions. It can be used in areas where hazardous gases are found such as mines, tunnels, shipyards, etc.
Yes, this fan is ideal for your fume and spark criteria. I would also recommend using galvanized or metal ducting and a safe clearance to exhaust out to. Do not use plastic and or vinyl ducting as it can light on fire unless the ducting manufacture states otherwise.
Can these fans be used to disperse ethanol fumes?
Yes, the explosion proof fan can be used to safely disperse ethanol fumes.
How long of a cord does it come with?
The lead cable that comes with our explosion proof ventilator is roughly 12-14 feet long. The cable is open wired meaning there is no plug at the end.
What is the weight of this exhaust fan?
Thanks for your question. The weight of this explosion proof ventilator is 29.75 pounds (13.5KG).
Hi, can you give me the dimensions of both the 200 mm 110v explosion proof fan (model #D1143684) and the 282mm 200v fan (model #D1155500)?
The dimensions of both exhaust fans are SKU #D1143684 - 42 x 36 x 34 cm and SKU #D1155500 - 39.5 x 32.5 x 41 cm
Hello! Two quick questions... 1. In the product description the cfm is stated as 55. Then, in the tech details it is listed as 882 cfm. Can you explain which one is true? I may be missing something here. 2. Where I can purchase anti-static ducting to use with this fan? Thanks!
The correct figure is 882 CFM. To purchase anti-static ducting for use with this fan, please refer to our flameproof ducts.
I have a customer looking for "Duck Toes" for a confined space fan? Any ideas?
Hi there. Please feel free to let us know if you have a specific questions about the D1143684 by contacting our sales team at 1-888-667-5776 or email at sales@deelat.com for assistance.
I just have a question regarding the power of the motors, would it be possible to manufacture a fan with the same CFM rating but of a higher power motor. For instance, can this model: SKU #D1143684 be made of a 0.75 Hp/1 Hp motor? Also what is the temperature rating for these units?
Our Explosion Proof Portable Exhaust Fan cannot be customized. If you are needing a 0.75-1 H.P. motor, we highly recommend #D1776353 & #D1146610. Temperature rating is 120 - 150 degrees Celsius. Please note that D1146610 is NOT explosion proof, but meets your Horsepower requirements.
Is this product classed by European ATEX standard? I plan to use it on oil tanker for ventilation on ballast tanks and other smaller tanks in gas zone.
The factory where the fans are made doesn't have ATEX certification; however, it does have CNEX certification. This is a classification that allows the fans to be used in hazardous environments.
How many cfm does 12" fan have, and also how many cfm does 10" fan have?
Aaron, The CFM rating for D1143684 is 883/1059. The D1143684 is a 12" fan.
Hello, What is the temperature range where this fan can work? and do you have models that allow to be at 120F?
The temperature range for our explosion proof exhaust fans is -20 °C to 60 °C, therefore, this product can endure temperatures of 120 °F (48.9°C).
How much does SKU #D1143684 weigh?
The weight of this explosion proof ventilator is 29.75 pounds (13.5KG).
What is the static pressure it produces?
The maximum static pressure produced by the explosion proof exhaust fan is 490 Pa.
Does the product come with a storage bag?
DEELAT ventilators do not come with a storage bag. If ordered, you will receive whats found in the photos on the website.
Please advise if you have ducting with a “y join” to into ducting to draw from two point thru one fan?
Hi Dave. Yes, we can provide "Y joint" ducting.
Does this unit come with any ducting? If not, what ducting is compatible?
DEELAT explosion proof ventilators do not come with any ducting, however, we do offer many different ducting options including DEELAT Explosion Proof Ducts. SKU # D1143815 would be a great option for this explosion proof fan,
Can this be used in a spray booth?
The DEELAT exhaust fan can be used in a spray booth.
Can you tell me more about the certification of D1143683?
All of our explosion proof fans have CE and explosion proof Ex certification.
We have a low-fume area where people wear air purifying respirators. Can this be placed inside that environment to move air around for cooling, or does it have to be placed outside the area and have the airflow ducted in?
DEELAT explosion proof ventilators are not really intended to be used for cooling. It has no chiller components so it will not cool the air. The ventilator can be used to bring air into an area by placing the ventilator outside and ducting in the fresh air, or it can be used to extract fumes by placing the portable ventilator in the area where the fumes need to be extracted and duct the fumes out. This is an explosion proof portable ventilator so it is safe to use in hazardous environments with flammable gases/fumes. On a personal note, we use one of these fans in our warehouse, and it does help circulate the air, keeping things cooler.
Do you have the flow rate vs pressure drop curve for these ventilators?
We have uploaded a curve chart for this product page, which you can download as a PDF file. Please refer to the Product Manual PDF on the product page.
What is CFM rating for this product?
Hi Ekrem. Thank you for your question. The CFM rating for D1143684 is 883/1059.
