Insulated Duct

- Glass Wool - 18" (Diameter) * 32' (Length)
SKU #D1774636
View All Insulated Ducting
OR
Select BLUE dropdown(s) below.
= the combination is not available.
Selecting GREY line also resets the options.
Certified
SGS certified
Open For Business & Shipping Daily During COVID-19
Buy this product
Select filters above OR


View All Products

Price
$6290
Quantity


Payment Methods

Free shipping on
orders over $400

Payment Methods
Calculate Shipping

General Description

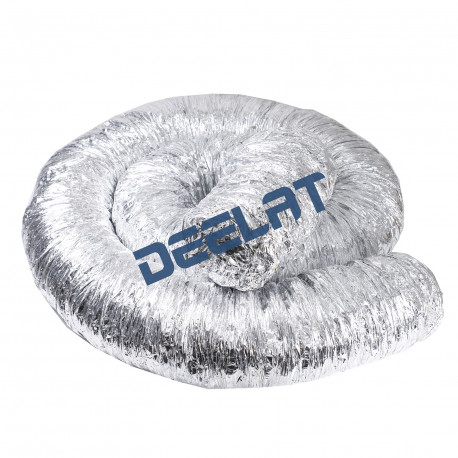

Insulated Duct – Glass Wool – 18" (Diameter) * 32' (Length)


The glass wool insulated duct is 18" diameter and a length of 32 feet. The thickness is 1", and the max temperature is 392°F.

Function
The glass wool roof cowl circulates air flow through the length of the ducting, and the material can be manipulated and still holds its shape to maintain airflow.

Applications
The flex duct may be used in any duct system environment with damaging chemicals, especially as floor ducting in a laboratory, in engineering settings, engine rooms, air conditioning systems or plant works.

Technical Details

Certifications: SGS
Diameter: 18"
Length: 32'
Glass Wool Thickness: 1"
Material: Glass Wool, Aluminum
Max Temperature: 392°F
Maximum Airflow: 6550 CFM
Positive Pressure: 3000-6000pa
Brand: Deelat Industrial
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Virginia S.
May 24, 2019

Will the glass wool insulation repel animals in the crawl space? Is 10 inch diameter the standard for home central heat and air units?

Hi Virginia, thanks for your question. We recommend using 4" or 6" diameter duct for your application. Unfortunately, glass wool insulation does not repel animals. If you have any other questions or concerns please do not hesitate to contact us.

Reply Deelat Industrial on Jun 03, 2019
Alfredo F.
Jun 24, 2020

What is the R Value of the cotton insulation in these ducts?

The R value of these ducts is around 3.5.

Reply Deelat Industrial on Jun 25, 2020
Linda R.
Nov 11, 2020

Can this duct be used for venting a range hood? It is 1000 cm a minute, so it's just domestic, but it travels 6m to the vent in the eaves, so I need something strong and heat resistant. It's over a gas cooktop with 800 clearance to the underside of hood.

Our insulated ducts with glass wool are mainly used in air-conditioning systems, and are not ideal for venting a range hood. We would suggest using D1146669-PVC Flexible Duct instead.

Reply Deelat Industrial on Nov 20, 2020
Diane D.
Dec 14, 2020

If I'm using this insulated duct under a mobile home, is the PVC harder for mice to chew or get into? I read and see it does not say rodent resistant.

Hi Diane. To answer your question, most of the flexible ductings are not rodent resistant. Our insulated duct is made with 2 layers of PVC compound fabrics and 1 layer of cotton, which means the thickness is 3mm. It could possibly still be chewed by mice and rodents, but it won't be able to be broken into as easily.

Reply Deelat Industrial on Dec 18, 2020
Donald M.
Dec 22, 2020

Is the diameter of insulated duct inside or outside?

The insulated duct has an outside diameter.

Reply Deelat Industrial on Jan 13, 2021
Victor P.
May 18, 2018

Can this insulated flexible 6" duct be used for bathroom vent through the roof ?

Hello Victor, thank you for your question. Our Glass Wool Insulated Duct can certainly be used to vent a bathroom. This duct can be used for an array of HVAC needs.

Reply Deelat Industrial on May 21, 2018
Michael F.
Dec 12, 2018

What is the R value of the glass/wool insulated flexible ducting?

Hello Michael, thank you for your question. The R value is 3.5. The glass wool has a thickness of 25MM. If you have any other question or concern please do not hesitate to contact us.

Reply Deelat Industrial on Dec 13, 2018
simon m.
Jun 27, 2019

Does this duct come in any other colors?

Hi Simon, thanks for your question. The duct comes in three colors: yellow, orange, or grey. If you need assistance with your purchase, please call our sales team at 1-888-667-5776 or email at sales@deelat.com!

Reply Deelat Industrial on Jul 02, 2019
