Industrial Exhaust Fan

- 110V - Single Phase - 35-7/16" (Diameter)
SKU #D1779530
View All Commercial Exhaust Fans
OR
Select BLUE dropdown(s) below.
= the combination is not available.
Selecting GREY line also resets the options.
Certified
SGS certified
Open For Business & Shipping Daily During Covid-19
1 Item in Stock
Select filters above OR


View All Products

Price
$1,02040
Quantity


Payment Methods

Free shipping on
orders over $400

Payment Methods
Calculate Shipping

General Description

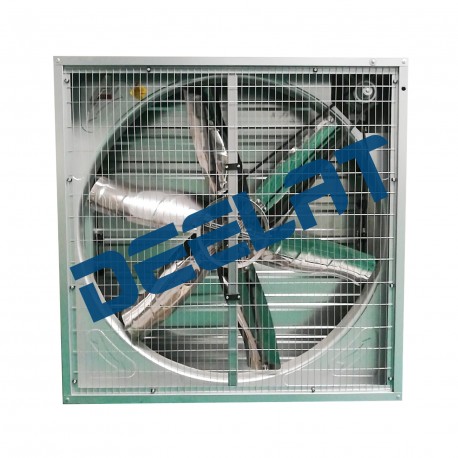

Industrial Exhaust Fan - 110V - Single Phase - 35-7/16" (Diameter)


The industrial exhaust fan has a 35-7/16" fan diameter and an air volume of 15,715 CFM. The blades are made from stainless steel, the push-pull ligature is made from nylon, and the frame and shutter are made from anti-corrosive galvanized steel. The fan is powered by a 110 volt motor that has a maximum speed of 560 revolutions per minute.

Function
The fan has an electric motor that allows the unit to pull air in through the grill, which it then propels out with force. The fan's ligature is a push-pull centrifugal device that opens the shutter at a 90 degree angle to provide the lowest possible air resistance and the largest possible air volume, and closes the shutter when the fan is off. There is no speed controller. The easy installation of this fan makes it simple to maximize output.

Applications
The fan is designed for use in textile factories, food processing facilities, supermarkets, commercial farms, greenhouses and other applications in industrial, commercial and agricultural sites.

Technical Details

Certifications: SAA, SGS, CE, BV
Size: 39-3/8" x 39-3/8" x 17-11/16"
Diameter: 35-7/16"
Fan Speed: 560 rpm
Air Volume: 15,715 CFM
Air Pressure: 60 Pa
Noise: less than 65 dB
Wattage: 550 W
Voltage: 110 V
Brand: Deelat Industrial
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Frank D.
Jan 23, 2021

Can speed be adjusted by a frequency controller and what's the delivery time for a 1000mm type to the Netherlands?

Yes, the speed can be adjusted by adding a controller. Since it is built-to-order, the fastest delivery date will be at beginning of April. Also, since it is bulky and heavy, there will be extra charge for transportation. If you have any other questions or concerns, please do not hesitate to contact us.

Reply Deelat Industrial on Feb 01, 2021
Eric C.
Jan 08, 2020

I have been looking at these exhaust fans for the last two days. This particular fan had, in the description, "415v (three phase)/240v sinlge phase" but this morning the description only says "415v *three phase". I would like to know if this fan is available in single (240v) phase please.

Yes, this industrial exhaust fan is available in single (240V) phase. You can contact out customer service to learn more. We are sorry for any confusion about descriptions, as we are currently updating our databases.

Reply Deelat Industrial on Jan 09, 2020
Hotham E.
Jan 21, 2019

Do you have a fan 500mm diameter

Hello Hotham, thank you for your question. Unfortunately we do not offer a fan that is 500mm. We offer 710mm, 900mm , 1000 and above.

Reply Deelat Industrial on Jan 24, 2019
Trent W.
Mar 12, 2019

Do these fans have CSA approval?

Hi Trent, thanks for your question. Unfortunately, these fans do not have CSA approval, but they do have CE and ISO certifications. If you have any other questions or concerns please do not hesitate to contact us.

Reply Deelat Industrial on Mar 20, 2019
Ray B.
Mar 12, 2018

What does push-pull mean with this fan?

Hello Ray, thank you for your question. The push-pull description for our centrifugal fan refers to the dual purpose of the fan; Air suction and air blowing.

Reply Deelat Industrial on Mar 14, 2018
Ray B.
Mar 12, 2018

This fan uses 380 volts. Is that 3 phase? Can it be made to run on single phase?

Hello Ray, thank you for your question. Our centrifugal fan is actually single phase so single phase hard wiring is required.

Reply Deelat Industrial on Mar 14, 2018
Stephen S.
Jan 17, 2021

Does this come with mounting brackets for a wall mount?

Hi Stephen. This fan is typically wall-mounted, therefore we do sell brackets for a proper wall mount.

Reply Deelat Industrial on Jan 18, 2021
Ray B.
Mar 12, 2018

This fan does not mention the horsepower of the motor. Would it be 1 hp or similar?

Hello again Ray, thank you again for your great questions. The centrifugal fan will be equipped with a 1.5 HP motor.

Reply Deelat Industrial on Mar 14, 2018
Cody V.
Oct 28, 2018

What are the exact dimensions?

Hello Cody, thank you for your question. The exact dimension of this common style exhaust fan is 1000 x 1000 x 450mm (l x w x h). If you have any other questions or concerns please do not hesitate to contact us.

Reply Deelat Industrial on Oct 30, 2018
Mike L.
Mar 10, 2021

Can you add filter(s) for paint booth exhaust application?

Industrial Exhaust Fans are not suitable to use in a paint booth. We suggest you use our explosion proof fans instead.

Reply Deelat Industrial on Apr 01, 2021
