Air Curtain
- 110V - 70-7/8" Door Width - 230W - Effective Height 9' 10-1/8"
General Description

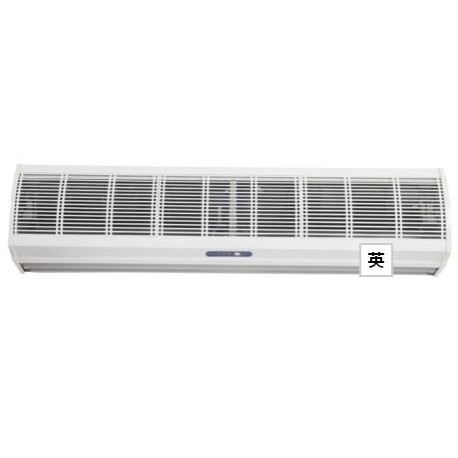

Air Curtain – 110V – 70-7/8" Door Width – 230W - Effective Height 9' 10-1/8"
The air curtain is 110V and has a door width of 70-7/8". The unit is 230W, and the wind volume output is 105944 cubic feet per hour.
Function
The air curtain sends a stream of air downward to create a vertical shield of air between distinct environments. The air doors are low-visibility and are placed over a door or window to maintain adequate temperature separation and to ensure, depending on specific needs, proper hot and cold air retention. It also reduces the presence of airborne pollutants and flying insects, and can help with energy costs.
Applications
The air doors have unlimited application and can be used for retail stores, shops, restaurants, production facilities, and warehouses. The air curtain is ideal for any setting in which doors are left open or are opened frequently and indoor air temperatures need to be maintained. The air curtain can also be used to create multiple distinct indoor environments, and helps with energy savings.
Technical Details
| Fan Blade Diameter: | 3-15/16" |
|---|---|
| Door Width: | 70-7/8" |
| Voltage: | 110 V |
| Wattage: | 230 W |
| Wind Volume Output: | 1750 CFM |
| Noise Level: | 47 dB |
| Effective Height: | 9' 10-1/8" |
| Weight: | 31.1 lbs |
| Remote Control: | Yes |
| Frequency: | 60 Hz |
| Brand: | Deelat Industrial |
