Wall Heating Panel

- 23.6 x 27.6 x .87" - 300W, 110V - Glass

Product Video

Radiant Electric Wall Heating Panel - 60*70*2.2cm - 300W, 110V - Glass
Open For Business & Shipping Daily During Covid-19
Buy this product
Select filters above OR


View All Products

Price
$18800
Quantity


Payment Methods

Free shipping on
orders over $400

Payment Methods
Calculate Shipping

General Description

Wall Heating Panel - 23.6 x 27.6 x .87" - 300W, 110V - Glass


The radiant electric wall heating panel has dimensions of 23.6 x 27.6 x .87" and is 300W. The unit is 110V with a carbon crystal heating element and frameless with the front surface made out of black glass. The surface temperature reaches 176 - 221°F.

Function

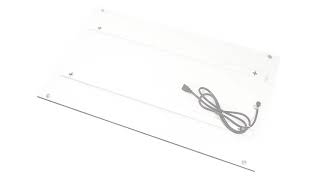

The radiant heat panel has a heating element that transfers heat to a room by infrared radiation and is fortified with an aluminum sheet that reflects heat into the room. The unit is installed on a wall or ceiling using anchored screws and plugs into a wall outlet using a standard 6.6' cable.

Applications
The radiant panel is intended for indoor use in bedrooms, offices, basements, or any area inside a home that stays cold and needs to be efficiently heated.

Technical Details

Size: 23.6 x 27.6 x .87"
Voltage: 110 V
Power: 320 W
Thickness: .87"
Weight: 14.2 lbs
Heat Capacity: 1.1 W/ ft3
Approximate Heating Area: 43 ft²
Heating Element: Carbon Crystal
Surface Temperature: 176 - 221°F
Electric Conversion Efficiency: 98%
Life Expectancy: ~100,000 H
Front Surface: Black Glass
Frame: Frameless
Back Material: Aluminum Sheet
Ingress Protection Ration: IP54 (Standard)
Show More Technical Specifications
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Don B.
Jun 07, 2018

What is the micron wavelength?

Hello Don, thank you for your question. The Radiant Electric Wall Heating Panel has a radiant output of about 8-10 micron wavelengths. This is ideal for comfort.

Reply Deelat Industrial on Jun 08, 2018
Greg M.
Oct 12, 2018

Could these be effective in heating pool water if mounted above my indoor pool? Looking for affordable alternative to solar and heat pump.

Hello Greg, thank you for your question. Unfortunately no, you cannot use these heating panels to heating pool water. They will however heat up the area around the indoor pool but not the water itself. The panels heat using a radiation method which only heats air.

Reply Deelat Industrial on Oct 16, 2018
