Toggle Clamp
- Vertical - Holding Capacity 220lbs
Product Video
General Description

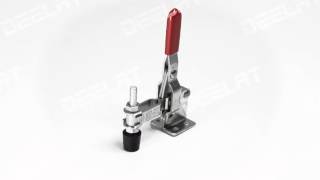

Toggle Clamp - Vertical - Holding Capacity 220lbs
This toggle clamp includes a control handle, holding bar and a system of pivot pins and levers. This particular model is a vertical type clamp with a handle opening angle of 65 degrees and a holding capacity of 220lbs.
Function
The pull toggle clamp is operated by the handle, which moves the clamping arm or holding bar to hold the desired object. The clamping force keeps the object in place.
Applications
Pull toggle clamps are used to keep a workpiece stationary in a variety of renovation applications. The clamp is often fixed to a fixture or a bench.
Technical Details
| Type: | Vertical Type |
|---|---|
| Holding Capacity: | 200lbs |
| Handle Opening Angle: | 65 degree |
| Bar Opening Angle: | 90 degree |
| Brand: | Deelat Industrial |
| Warranty: | 180 Day |
