Tachometer
Product Video
General Description

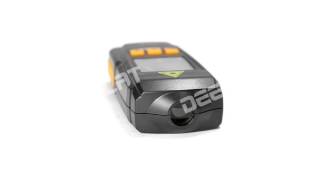

Tachometer
The tachometer has a measuring range of 2.5~99999 RPM and a sampling rate of 1 time/second. The overall size of the unit is 55.7 x 29.9 x 127 mm.
Function
The tachometer is a handheld device that measures the RPMs of an object using an internal sensor and a laser measuring system to ensure user safety. The unit has a 5” digital LCD display and is powered by two 2.5V AAA batteries.
Applications
The tachometer is ideal for a number of settings, such as machine maintenance, where RPMs need to be measured.
Technical Details
| Measuring Range: | 2.5~99999 rpm |
|---|---|
| Unit: | RPM |
| Revolution Under 1000 rpm: | 0.1 rpm |
| Revolution Over 1000 rpm: | 1 rpm |
| Accuracy Under 1000 rpm: | +/- 0.1% |
| Accuracy Over 1000 rpm: | +/- 1% |
| Reading Display: | 5" LCD |
| Laser Power: | Class II 2-5 mW |
| Sampling Rate: | 1 Time/Second |
| Measuring Distance: | 50~500 mm |
| Time Base: | Quartz Crystal |
| Operating Temperature: | 0~50'C (32~122'F) |
| Operating Humidity: | 10-90% RH |
| Unit Size: | 55.7 x 29.9 x 127 mm |
| Weight: | 106g |
