Sliding Door Closer and Spring

- Hidden - Width 1100mm - Weight 60-85kg - Slider Length 223mm

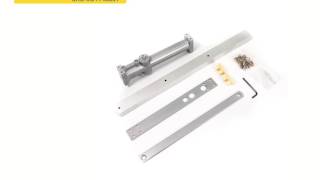

Product Video

Sliding Door Closer and Spring - Hidden - Width 1100mm - Weight 60-85kg
Open For Business & Shipping Daily During COVID-19
1 Item in Stock
Select filters above OR


View All Products

$2700 -20%
$2160
Quantity


Payment Methods

Free shipping on
orders over $400

Payment Methods
Calculate Shipping

General Description

Sliding Door Closer and Spring - Hidden - Width 1100mm - Weight 60-85kg - Slider Length 223mm


The sliding door closer and spring is a hidden type, as well as a non-stay type. It has a slider length of 223mm and is suitable for use with doors weighing anywhere between 60-85kg with a width of 1100mm. The door closer is constructed from an aluminum alloy cover with a combination of pinion cap and double heat treated tempered springs. Included in this pack are the closer body, pinion cap, main arm assembly, standard screw pack and parallel arm bracket. There is also an additional screw back. It has been finished with a primer for the prevention of rust and corrosion, and the steel heat treated and precision machined for optimal strength and performance. Aesthetic finishes include a choice of ALM, GOL, BRZ and DBZ. Fasteners are a combination of self-reaming, self-tapping wood and machine screws.

Function
This sliding door closer functions to safely close the door it is installed onto. Instructions for installation are included in the manual. The closer features valves, which are adjustable, latching and sweep speed, along with an adjustable back check valve and optional staked valves. Regular, parallel and top jamb arm and bracket mounts are included, which offer a 15% power adjustment.

Applications
This door closer and spring is designed to provide safe and controlled closure of all heavy duty doors. The closer is ideal for offices, schools, public buildings and other areas where doors are expected to remain closed when not in use. This is helpful for concerns of privacy, climate control and security. Different sizes of door closers are available to find the perfect secure fit for your door.

Technical Details

Door Width: 1100 mm
Door Weight: 60~85 kg
A: 223 mm
B: 206 mm
C: 19 mm
D: 44.5 mm
E: 72.5 mm
Brand: Deelat Industrial
