Short Radius Elbow

- 3A - 3/4”

Product Video

90 Short Radius Pipe Elbow: 3/4
Open For Business & Shipping Daily During COVID-19
10 Items in Stock
Select filters above OR


View All Products

$1560 -20%
$1248
Quantity


Payment Methods

Free shipping on
orders over $400

Payment Methods
Calculate Shipping

General Description

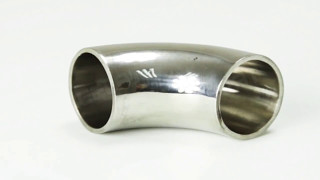

Short Radius Elbow – 3A – 3/4”


The short elbow pipe is a 3A standard 3/4” pipe with an angle of 90°. It is constructed out of stainless steel and features a weld connection. The wall thickness is .065”.

Function
The short elbow pipe is used as one part of a larger sanitary valve system in conjunction with other fittings. Constructed in the form of an elbow, connections are made to other elements of the sanitary system to shape the line as needed. The elbow pipe is designed to minimize the buildup of bacteria in the line and is resistant to corrosion.

Applications
The short elbow pipe, like its sanitary valve counterparts, is used in a number of industrial environments, including food and beverage, cosmetics, biotechnology, and pharmaceuticals.

Technical Details

MATERIAL: 304 Stainless Steel
CONNECTION TYPE: Weld
STANDARD: 3A
WALL THICKNESS: 0.065
ANGLE: 90
SIZE: 3/4"
Brand: Deelat Industrial
Warranty: 180 Day
