Portable Ventilation Fan

- Metal - Diameter 9-27/32" - Single Phase - 110V

Product Video

Open For Business & Shipping Daily During COVID-19
2 Items in Stock
Select filters above OR


View All Products

$12500 -20%
$10000
Quantity


Payment Methods

Free shipping on
orders over $400

Payment Methods
Calculate Shipping

General Description

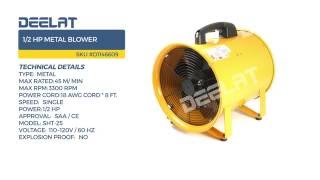

Portable Ventilation Fan - Metal - Diameter 9-27/32" - Single Phase - 110V


The vent fan is metal with a power of 1/2 HP. The max RPM of the unit is 3300 and it has a size of 15 x 12 x 14".

Function
The portable ventilation fan has an electric motor that allows the unit to pull air into the unit through the grill, which it then propels out with force. The fan can be used in conjunction with ducts to move air over a longer distance with more precision as well. It has one speed setting along with a handle that enables it to be moved easily.

Applications
The vent fan can safely be used for air supply and exhaust in deep working spaces where ceiling fans are non applicable, especially for cable maintenance, ship building, municipal underground engineering, and chemical or industrial factories. The ventilator can also be used for drying.

Technical Details

Size: 15 x 12 x 14"
Blower Diameter: 9-27/32"
Weight: 19.4 lbs
Type: Metal
Power: 1/2 HP
Voltage: 110 - 120 V / 60 Hz
Power Cord: 18 AWG Cord x 8 Ft.
Max RPM: 3300 RPM
Explosion Proof: No
Speed: Single
Max Rated: 1500 CFM
Approval: SAA / CE
Brand: Deelat Industrial
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Scott K.
Feb 02, 2018

Can I use this fan in a dust collection system in a woodshop with proper filtering before the fan?

Hello Scott, thank you for your question. In theory I suppose you can as the fan is powerful enough to extract large volumes of air per minute. That being said, this blower is not really intended to be used to collect dust and we would need more information on your application ie drawings, designs, etc to make a final decision on whether it would or would not work for your needs.

Reply Deelat Industrial on Feb 05, 2018
don y.
Apr 05, 2018

it can be use for exaust in a server room , its gonna be on 24/7

Hello Don, thank you for your question. Yes you can certainly use our portable exhaust fan to exhaust a server room or any room for that matter. However, the maximum consecutive run time to safely use this ventilator is 1500 consecutive hours. We would not recommend running it any longer consecutively.

Reply Deelat Industrial on Apr 06, 2018
Crystal A.
May 15, 2018

Attic efficiency is 10 ×12 would this fan be recommended

Hello Crystal, thank you for your question. No unfortunately this portable exhaust fan is not suitable for an attic. We actually offer attic fans that are specifically designed to be installed on the roof to ventilate your attic. Please contact our customer support staff to go over the many options we offer for attic fans

Reply Deelat Industrial on May 18, 2018
Scott K.
Feb 02, 2018

How would this fan handle being connected to duct work of a smaller diameter and how long does it take for the fan to reach full speed?

Reaches full speed in less than 3 seconds. No idea about smaller ducting. Seems pretty powerful. Quite LOUD.

Reply PAt G. on Feb 05, 2018
Scott K.
Feb 02, 2018

What is the CFM rating on this fan

Hello Scott, thank you for your question. The air blower fan moves an air volume of about 25m3/min which translates to roughly 885 CFM, We do have other models that are a bit bigger which have more CFM or smaller that has less CFM.

Reply Deelat Industrial on Feb 05, 2018
Eugene M.
Feb 19, 2018

can this fan be used as a safe exhaust fan for a varnish spray booth?

Hello Eugene, thank you for your question. This portable exhaust fan will certainly work to remove harmful fumes from a booth, however, only if the varnish fumes are not flammable. If the fumes you are trying to extract are flammable you will need to use an explosion proof ventilator or air blower. As long as the fumes in the booth are not flammable you should be OK to use this exhaust fan.

Reply Deelat Industrial on Feb 27, 2018
