Portable Ventilation Fan

- Diameter 12" - Single Phase - 110V

Product Video

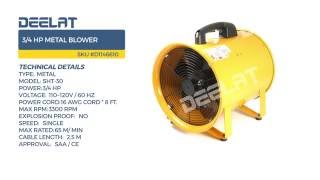

3/4 HP Metal Blower

Feature Video

Air Blower Fan and Mover - 12
Open For Business & Shipping Daily During COVID-19
7 Items in Stock
Select filters above OR


View All Products

$14690 -20%
$11752
Quantity


Payment Methods

Free shipping on
orders over $400

Payment Methods
Calculate Shipping

General Description

Portable Ventilation Fan - Diameter 12" - Single Phase - 110V


The vent fan has a power of 3/4 HP, and the max RPM of the unit is 3300. The unit has a size of 26 x 14 x 17" along with a blower diameter of 12 inches.

Function
The portable ventilation fan has an electric motor that allows the unit to pull air into the unit through the grill, which it then propels out with force. The fan can be used in conjunction with ducts to move air over a longer distance with more precision as well. It has one speed setting along with a handle that enables it to be moved easily.

Applications
The vent fan is used for home, commercial, or industrial applications in ventilating enclosed spaces such as attics, for drying floors and removing moisture after a leak or a flood, and in general in any environment where ventilation or drying is necessary.

Technical Details

Size: 26 x 14 x 17"
Blower Diameter: 12"
Weight: 25.5 lbs
Type: Metal
Power: 3/4 HP
Voltage: 110 - 120 V/ 60 Hz
Power Cord: 16 AWG Cord x 8 Ft.
Max RPM: 3300 RPM
Explosion Proof: No
Speed: Single
Max Rated: 2300 ft3/ min
Cable Length: 8.2 ft
Approval: SAA/ CE
Brand: Deelat Industrial
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Richard C.
May 19, 2018

What is the CFM for this fan?

Hello Richard, thank you for your question. This Air Blower Fan has a CFM rating of approximately 213 CFM. If this fan does not have the air volume you are looking for we do offer other air blower fans that have a higher CFM rating, Please contact our customer support team to go over your options.

Reply Deelat Industrial on May 21, 2018
Victor M.
Sep 04, 2019

Does this particular fan allow for ducts simultaneously on both ends?

yes

Reply nick v. on Sep 04, 2019
Brian G.
Sep 20, 2019

Is this fan motor weatherproof?

The portable ventilation fan is IP54, which means that it is protected against dust and splashing. This makes the fan acceptable for common weather patterns as long as the wind or precipitation is not severe.

Reply Deelat Industrial on Sep 23, 2019
Voucher
Receive $100 For contributing to our community
After you purchase, contribute to our community below by reviewing the high-quality products we sell. We are confident in our quality and for your contribution, you will be automatically entered into our current month\'s $100 giveaway! Click for details »
If you have feedback for our CUSTOMER SERVICE department, please email directly or call us toll-free 1-888-785-2677 and ask for Jesse.
Deelat Service
Review by Ed Porter from Langley, Canada
Yes, I recommend this product

Pros

We have purchased this fan on previous occasions from Deelat. They are excellent products and we will be purchasing more.

Cons

Unfortunately the last fan arrived damaged. This created a bit of confusion among the Deelat group and they took a bit of time to arrange for a refund. They were eager to help and everything was resolved satisfactorily.

Other remarks

I now check the Deelat site first when ordering materials or tools for my company. Their service is much superior to Amazon - their prices are more competitive
