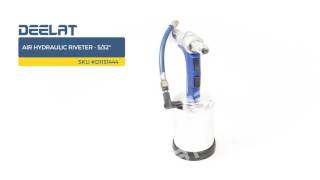

Pneumatic/ Hydraulic Air Riveter Gun

- 5/32", 3/16", 15/64", 1/4" (4 mm, 4.8 mm, 6 mm, 6.4 mm)

Product Video

Air Hydraulic Riveter - 5/32
Open For Business & Shipping Daily During COVID-19
1 Item in Stock
Select filters above OR


View All Products

$47270 -20%
$37816
Quantity


Payment Methods

Payment Methods

General Description

Pneumatic/ Hydraulic Air Riveter Gun – 5/32”, 3/16", 15/64", 1/4" (4 mm, 4.8 mm, 6 mm, 6.4 mm)


The pneumatic/ hydraulic air riveter gun has rivet capacity settings of 5/32”, 3/16”, 15/64”, ¼” and the air consumption is 50 L/min. The tool has a total length of 320 mm.

Function
The pneumatic/ hydraulic air riveter gun uses a hydraulic system and is powered via air pressure fed into the bottom of the tool. A rivet is inserted into the head of the riveter, and the tool is then aimed at a predrilled hole. Once the head is aligned with the hole, the riveter is triggered and immediately locks the mandrel to the body, cuts the mandrel, and deploys the rivet, creating a secure bond.

Applications
The pneumatic/ hydraulic air riveter gun is ideal for any context in which rivets are needed, such as construction, metal fabrication, the automotive and aeronautics industries, and woodworking. The pneumatic function makes the tool especially useful for cases where installing many rivets is required.

Technical Details

Blind Rivet Setting Capacity (Aluminum & Steel)
4, 4.8, 6, 6.4 mm (5/32", 3/16", 15/64", 1/4")
Traction Power: 3410 lbs
Stroke Length: 26 mm
Air Consumption: 50 L / min
Overall Length: 320 mm
Air Inlet: P.T 1/4"
Brand: Deelat Industrial
