Pneumatic Air Cutter (4.0 mm, 5.0 mm)

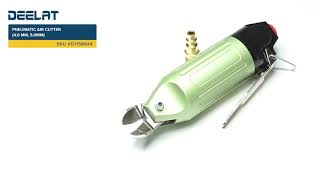

Product Video

Pneumatic Air Cutter (4.0 mm, 5.0 mm) #D1158644
Open For Business & Shipping Daily During Covid-19
4 Items in Stock
Select filters above OR


View All Products

$19580 -20%
$15664
Quantity


Payment Methods

Free shipping on
orders over $400

Payment Methods
Calculate Shipping

General Description

Pneumatic Air Cutter for Plastics (4.0 mm, 5.0 mm)


The pneumatic shear has a cutting capacity on hard plastic of 4.0 mm and on soft plastic of 5.0 mm. It uses an FD-6 blade and has an air consumption of 112 l/min (4cfm).

Function
The pneumatic air cutter is fed high speed air from the bottom of the unit, which powers the cutting head. When a material that needs cutting is positioned within the head, manually squeezing the handle on the nipper activates the shearing action of the blade. The nipper can also be used for crimping, bending, and grabbing according to specific needs.

Applications
The air powered pneumatic shear is ideal for environments where copper, iron, and other hard materials need to be cut quickly and in large quantities, such as in construction, automotive, industrial settings.

Technical Details

Length: 171 mm
Weight: 350 g
Handle Diameter: 46 mm
Air Consumption: 112 l/min (4 cfm)
Air Pressure: 5-6 kg/cm2 (0.5 ~ 0.6 MPa)
Blade: FD-6
Cutting Capacity: Soft Plastic 5.0 mm, Hard Plastic 4.0 mm
Brand: Deelat Industrial
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Anyurith H.
Apr 16, 2019

Would it cut 8 AWG tinned copper wire?

Hi Anyurith, thank your for your question. This cutter has blades specifically designed to cut through plastic, thus cutting copper wire wouldn't be recommended. Please see your question for D1775585 -- that is a better cutter for your application. If you have any other questions or concerns please do not hesitate to contact us.

Reply Deelat Industrial on Apr 19, 2019
Alli K.
Apr 27, 2018

What size is the air fitting on the end of these SKU #D1158644 pneumatic shears?

Hello Alli, thank you for your question. The air fitting on the end of our pneumatic shears SKU# D1158644 is 8mm. If you have any other questions or concerns please do not hesitate to contact our customer support team.

Reply Deelat Industrial on Apr 30, 2018
Jennifer T.
May 02, 2018

Why is this cutter a lot more expensive than others made in Taiwan and is it made especially for DEELAT what makes it better than the other ones made in Taiwan that selling for less I need to cut 2 mm HH brass square rod?

Hello Jennifer, thank you for your question. We cannot speak for the other tools you have seen online but we certainly can stand behind our Deelat branded tools. Our pneumatic shear and air cutters are hand assembled and thoroughly tested. They are also backed by our industry leading warranty. We also stalk all our products locally which many of the other tools you are seeing can have 1 or even 2 month turnaround. If you have any other questions or concerns please do not hesitate to contact our customer support team.

Reply Deelat Industrial on May 02, 2018
Abdul R.
Sep 27, 2019

Can we use this product to trim fiberglass that is 4mm thick?

We have not tried using the pneumatic air cutter on fiberglass, as it is meant for other hard and soft plastics, so proceed with caution if you wish to do this.

Reply Deelat Industrial on Oct 02, 2019
