Motor Start Capacitor

- 233 - 280 Microfarads - 8.5 x 3.6 x 8.5

Product Video

Motor Start Capacitor – 233 – 280 Microfarads - 8.5 x 3.6 x 8.5 cm
Open For Business & Shipping Daily During Covid-19
Buy this product
Select filters above OR


View All Products

Price
$260
Quantity


Payment Methods

Free shipping on
orders over $400

Payment Methods
Calculate Shipping

General Description

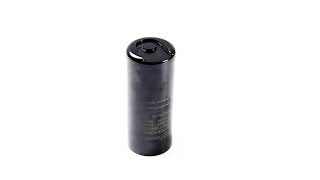

Motor Start Capacitor – 233 – 280 Microfarads - 8.5 x 3.6 x 8.5


The motor start capacitor has a microfarad rating of 233 – 280 and dimensions of 8.5 x 3.6 x 8.5. The operational temperature range is -25 – 65° Celsius, and the tolerance range is +/- 20%. The operating frequency is 50/60 Hz.

Function
The motor start capacitor is electrolytic and non-polarized. The capacitor is used in a motor to increase its starting torque to a set speed, providing extra power. It functions within the motor only briefly to achieve this effect. The Bakelite shell protects the capacitor against damage.

Applications
The motor start capacitor is used in small motors such as those found in air conditioners, hot tubs, and fans. The start capacitor is used in most motors in order to provide the necessary power boost.

Technical Details

Size: 8.5 x 3.6 x 8.5 cm
Microfarads Range: 233-280
Case Size: 36 x 85 mm
Bakelite Case
Voltages: 110 V/125 V
Operating Temperature: -25 - 65° Celsius
Voltage Range: 110 - 330 V AC
Capacitance Tolerance: +/- 20%
Operate Frequency: 50/60 Hz
Termination: 1/4' Quick Disconnect Terminals (Std.)
Performance Specification: Meets EIA-463-A
UL Recognized Capacitor
Brand: Deelat Industrial
