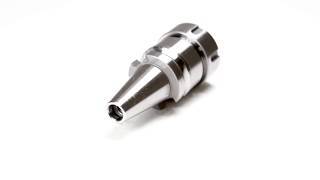

MAS 403 Collet Chuck BT30xER32-70

Product Video

n/a
Open For Business & Shipping Daily During Covid-19
1 Item in Stock
Select filters above OR


View All Products

$4250 -20%
$3400
Quantity


Payment Methods

Free shipping on
orders over $400

Payment Methods
Calculate Shipping

General Description

This high-quality collet chuck features a wide clamping range and is made of allied case hardened steel. We have a number of different chucks to choose from that offer the perfect sizes and dimensions to suit your needs. Ideal for a wide variety of tool holder applications, you'll find that our chucks outperform the rest and stand the test of time.

Technical Details

Style: MAS 403 BT-ER
Model: BT30xER32-70
L1: 70 mm
D: 50 mm
D1: 31.75 mm
Clamping Range: 1~20 mm
Material: Alloyed case hardened steel
Taper Tolerance: less than AT3
Hardness: HRC56-58
Balancing: G6.3
Brand: Deelat Industrial
