DC Motor Controller
- Brushless - 48-60V, 1500-2000W, MOSfet 24pcs - Const. Current 80A

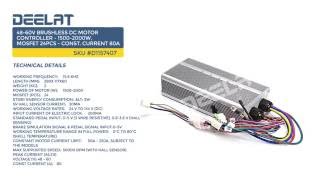

Product Video
General Description
Technical Details
| Length (mm): | 280x 117x60 |
|---|---|
| Voltage (V): | 48 - 60 |
| Const Current (A): | 80 |
| Peak Current (A): | 210 |
| Power of Motor (W): | 1500-2000 |
| MOSfet (pcs): | 24 |
| Weight (kg): | 2 |
| Working Frequency: | 15.6 KHz |
| STDBY Energy Consumption: | < 3W |
| 5V Hall Sensor Current: | 30mA |
| Working Voltage Rates: | 24 V to 144 V (DC) |
| Input Current of Electric Lock: | 200mA |
| Standard Pedal Input: | 0-5 V (3 wire resistive), 0.8-3.6 v (hall sensing) |
| Brake Simulation Signal & Pedal Signal Input: | 0-5V |
| Working Temperature Range in full power: | 0C to 80C (shell temperature) |
