Pneumatic Air Cutter (0.9 mm)

SKU #D1172464
Certified
CE certified

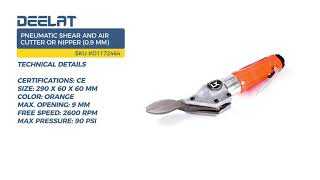

Product Video

Pneumatic Shear and Air Cutter or Nipper (0.9 mm)
Buy this product


Price
$12399
Quantity


Payment Methods

Payment Methods

General Description

Pneumatic Air Cutter (0.9 mm)


The pneumatic shear has a cutting capacity on stainless steel of 0.9 mm. The color of the unit is orange, and it has an air consumption of 3 CFM.

Function
The pneumatic air cutter is fed air from the bottom of the unit, which powers the cutting head. When a material that needs cutting is positioned within the head, manually squeezing the handle on the nipper activates the shearing action of the blade. The nipper can also be used for crimping, bending, and grabbing according to specific needs.

Applications
The pneumatic shear is ideal for environments where steel and other hard materials need to be cut quickly and in large quantities, such as in construction, automotive, industrial settings.

Technical Details

Certifications: CE
Size: 290 x 60 x 60 mm
Color: Orange
Max. Opening: 9 mm
Free Speed: 2600 RPM
Max Pressure: 90 PSI
Air Inlet: 1/4 "
Hose Size: 3/8"
Air Consumption: 3 CFM
Weight: 1.05 kg
Able to Cut: 0.9 mm Stainless Steel
Brand: Deelat Industrial
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.
