Door Closer and Spring
- Hidden - Hold-Open - Width 750-850mm - Weight 25-45kgProduct Video

Open For Business & Shipping Daily During COVID-19
General Description

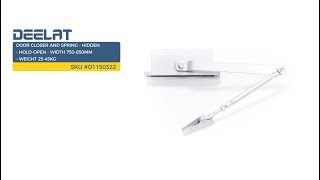

Door Closer and Spring - Hidden - Hold-Open - Width 750-850mm - Weight 25-45kg
This hold-open door closer has dimensions of 150x38x58mm. It is suitable for use with doors weighing anywhere between 25 and 45 kg, and with a width of between 750 and 850mm. It features a polished silver finish, and passes the national fire resistance standards.
Function
The hold-open door closer is installed onto the door frame, according to its manual. It holds the door at a 90-degree position, and then provides safe and controlled closure of the door. The door closer can be adjusted to one of two closing speeds.
Applications
The hold-open door closer is ideal for offices, schools and public buildings where doors are expected to remain closed when not in use, for privacy or climate control purposes. It is suitable for any medium-sized door.
Technical Details
Certifications: | CE |
---|---|
Power Size: | En 2 |
Dimension of door closer: | 150x38x58 mm |
Exterior Color: | Bright silver ( different color available ) |
Door Weight: | 25-45 kg |
Door Width: | 750-850 mm |
1 installation manual | |
Various installation methods | |
Pass the national fire resistance detection | |
EN1154 standard | |
Brand: | Deelat Industrial |

Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question!
Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.
How does the hold-open function work?
Hello Michael, thank you for your question. In general terms, a manual door closer is designed to assist a person using a doorway allowing them to smoothly and effectively open and shut a door without the need to physically return the door to the framed opening themselves. When properly adjusted, there will be a slight "back-pressure", giving the user some feedback as to the weight of the door, followed by a smooth transition as the door glides easily open in front of the user. Upon reaching the maximum set opening of the door, the closer takes full control dampening the opening forces, quietly and gently closing the door until the door is back in the frame, latched and ready for the next use. In every door closer application, the one basic essential requirement is that the door closer body and door closer arm be properly and securely attached to the doorway components. A door closer body and arm operate the opening and closing actions of the door that they are mounted to, exerting forces that are controlled by a few different methods. Some closers operate using spring tensions while others operate using air pistons. The most elaborate and sophisticated closers function using both spring tension.
