Driveway Heat Cable

- PVC - 0.6 M x 2.3 M - 120 V
SKU #D1774673
View All Driveway Heat Cables
OR
Select BLUE dropdown(s) below.
= the combination is not available.
Selecting GREY line also resets the options.
Certified
UL certified

Product Video

Driveway Heating Cable Mat - PVC - Deelat Industrial
Open For Business & Shipping Daily During COVID-19
Buy this product
Select filters above OR


View All Products

Price
$65021
(GST included)
Quantity


Payment Methods

Payment Methods

General Description

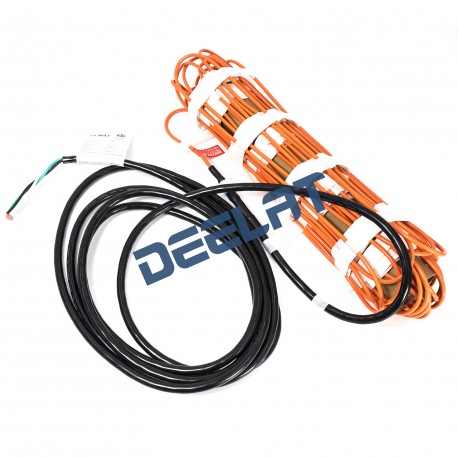

Driveway Heat Cable - PVC - 0.6 M x 2.3 M – 120 V


The driveway heat cable has a PVC coating and is 18.3 meters long. The cable has a voltage of 120 V with a power of 730W.

Function
The driveway heat cable snow melting mats are securely installed under pavement prior to the pouring of asphalt or concrete in a driveway or sidewalk. The cable is spliced to cold leads, which are connected to a control unit. Once the heated driveway system is connected to its power source, the cable provides radiant heat and warms the surrounding area.

Applications
The heat cables are ideal heated driveway systems for preventing snow and ice buildup in commercial and residential applications for driveways, sidewalks, and other outdoor areas where hard material, such as concrete, asphalt, or pavers, is installed. These snow melting cables are the ideal heating system.
Download PDF
Download Manual
SKU #D1774673
Download PDF

Technical Details

Certifications: UL
Voltage: 120V
Power: 730W
Length: 18.3 meter
Mat Dimension: 0.6 M x 2.3 M (W x L)
Cable Conductor Insulation: Fluoropolymer and XLPE
Cable Outer Insulation: PVC
Cold Lead: 6m long
Brand: Deelat Industrial
Voucher
Do you have a question about this product?
Receive $5 off your purchase simply for asking a question! Ask us anything! In fact, we use questions asked on our website about our products to further inform future customers, so we want you to leave a question. In addition, you will automatically be entered in our monthly $100 giveaway when you ask a question! Click for details »
If you need an answer to your question immediately, please call our friendly CUSTOMER SUPPORT.

Review your question to make any final changes.
It may be sent to fellow customers so ask as if you were asking a friend.

Brent F.
Oct 25, 2017

What area can 10M cover in square feet?

Hello Brent, thank you for your question. This D1774670 driveway heating cable is 2.6ft long by 1.9ft wide (0.6 M x 0.8 M) and covers an area of 4.94 square feet (0.46 square M). Our driveway heat cables come in the form of a mat to make installation easy. The mats are always 1.9 feet in width (0.8M) and lengths vary from 2.6ft (0.6M) up to 35 ft (10.7M). Please contact our customer support team if you have any other questions.

Reply Deelat Industrial on Oct 25, 2017
Russ b.
Nov 20, 2018

We are going to install an 16x24 paver block patio how much heating mat do we need?

Hello Russ, thank you for your question. If you want to install the driveway heat cable to cover the entire patio, you would require 384 square feet (36 square meters) of mat. It would be best to use our longest length of mat, which is sku D1775154. Each mat would cover 66 square feet (6 square meters) and you would require a total of 6 mats. However, you could probably lay down 3 mats of the D1775154 and still have sufficient coverage.

Reply Deelat Industrial on Nov 26, 2018
don m.
Jan 22, 2018

i have a poured black top drive. can i cut a trench and install the wire, then fill in the trench? we,re talking about 200 ft

Hello Don, thank you for your question. It will be difficult to cut a trench and install the heating cables, since it is always best to lay the cables on a wire frame so that there is also asphalt or concrete poured beneath the cable. Please see the installation manual and refer to page 12 and then 21-24 for more information.

Reply Deelat Industrial on Jan 23, 2018
Steve S.
May 15, 2020

Everything we read about this product indicates the intention is to have something laid over top of it i.e. concrete / asphalt. We have a dirt/gravel driveway so should we stick with using and burying the de-icing cables instead? Thank you.

Our driveway heat cables work better installed underneath the driveway, while de-icing cables are used for exposed areas. Our driveway heat cables will work for under dirt/gravel driveway with no problems. You can bury the cables in the dirt to keep them from being harmed by the vehicles driving over them.

Reply Deelat Industrial on May 19, 2020
Troy P.
Apr 17, 2018

Does the sensor and controls come with the Deelat smow melting mat?

Hello Troy, thank you for your question. The sensor comes with all skus, as it is built into the driveway heating cable mat. You can easily wire in any control of your liking, and the driveway heat cables also can be linked together easily to cover any area. However, no controls come with the driveway heating cable mat.

Reply Deelat Industrial on Apr 18, 2018
Brian G.
Jul 10, 2020

What preparation is required before pouring cement?

The installation guide that comes with each driveway heating cable will give you detailed instructions. If you need further assistance, please contact our customer support.

Reply Deelat Industrial on Aug 04, 2020
Nathan a.
Jun 14, 2018

Do the cables come in custom configurations for curved driveways?

Hello Nathan, thank you for your question. For a curved drive way we recommend purchasing the driveway heating cables instead of the preassembled mats. The reason is you are able to install the cable in whatever pattern you wish which will benefit you if you have an oddly shaped driveway. Please look at SKU# D1775422 for your reference. D1775154 is our 35.1 ft (10.7M) length, but we sell these driveway heating cables in many length,

Reply Deelat Industrial on Jun 15, 2018
Brian G.
Jul 31, 2020

Does the cable have to be connected to a control unit or can it just be connected to a switch ?

The driveway heat cable connect to a switch directly, or connect to a temperature control.

Reply Deelat Industrial on Aug 04, 2020
Erin W.
Sep 26, 2018

How long does it take to heat 4inches of concrete?

Hello Erin, thank you for your question. It would take roughly 30-45 minutes to heat up 4" of concrete if the driveway heating cables are installed in the recommended pattern shown in the manual provided with the cables.

Reply Deelat Industrial on Sep 27, 2018
Dinko T.
Sep 18, 2019

Can I use it on the roof to prevent ice dam?

Declan L.
Oct 31, 2017

Can I install on top of base before asphalt is poured, or does it need a layer before asphalt is put on top of it?

Hello Declan, thank you for your question. Yes you certainly can install the cables on a base before pouring the asphalt over it. We have had customers use a galvanized steel mesh as a base between the bottom layer of the driveway and the asphalt. They would lay the mesh on top of the bottom layer, lay the heating mats on top of the mesh and them pour the asphalt on top. Make sure to rake the asphalt carefully. The rake should not come in contact with the heating cables. You can use other type bases but that mesh seems to work very well.

Reply Deelat Industrial on Nov 01, 2017
Tony r.
Feb 13, 2019

Is this cable good for a flat roof? I am trying to have some snow melt on my flat roof.

Hi Tony, thank you for your question. We strongly advise you to use a de-icing cable, not a driveway heating cable. Click here to view de-icing cables: https://www.deelat.com/building-materials/outdoor-de-icing-heating-cables/ Deelat outdoor de-icing cables are plugged into electrical outlets and heat up internally to raise the temperature of surrounding areas. Deelat outdoor de-icing cables are used around piping and on various types of roofs in both commercial and residential settings for freeze protection.

Reply Deelat Industrial on Mar 18, 2019
Becky L.
Dec 29, 2017

Can this also be used under wood or texture planking over a concrete sidewalk?

Hello Becky, thank you for your question. We do not recommend installing this heating cable under wood because the surface temperature can reach up to 110°C and can be a fire hazard. You could install n texture planking but depends on the material.

Reply Deelat Industrial on Jan 11, 2018
Brian K.
Sep 04, 2019

Can you just hook it to a 2 way 120v light switch ?

Yes, you can wire the cables in the driveway heating cable mat to any light switch, as long as the current is 120V.

Reply Deelat Industrial on Sep 10, 2019
Tony C.
Jan 17, 2018

how much would it cost me to heat a drive way 15'x20', and what other material would i need? Do you install or must i find an installer?

Hello Tony, thank you for your question. For a driveway your size, we would recommend ordering QTY 4 of D1775154. That will give you enough cable to deice the entire surface area of the driveway. No other material is needed other than the cable and the power source, however, a professional installation is HIGHLY recommended.

Reply Deelat Industrial on Jan 18, 2018
JACLK S.
Sep 27, 2019

Will this product work if i just lay it on my tile patio?

We do not recommend laying the driveway heating cable mat on a tile patio, but to install it under gravel before mixing the concrete. However, the cable is fully waterproof, so it will not be affected by any melt if it is on the surface. For cables that are more suited to laying on top of a surface, please visit our de-icing cables.

Reply Deelat Industrial on Oct 02, 2019
